Product Number: EX10021228
|Model: S-MAG 200
MIG/MAG Welding Machine - 200A - 230V
Key features
- Flexible – maximum freedom of movement thanks to the 5 m hose package
- Modern – high-quality IGBT inverter
- Powerful – TIG welding up to 200 A, MMA up to 180 A and TIG Lift arc up to 200 A
- Compact – impresses with its handy size
- Efficient – suitable for numerous welding situations
Delivery details
Premium Guarantee
User Manual
Great welding results!
For several years I have been creating works of art for the home and garden using materials such as wood and scrap. With the Stamos welding machine I was able to achieve reliable (stable) results and expand my portfolio of works of art. Plus, welding is absolutely fun! Great product and easy access to replacement parts.
Technical details
 |  |  |
|---|---|---|
(4) €299.00 MIG/MAG Welding Machine - 200A - 230V On Sale Currently seen | (1) €301.00 Factory second Combined Welder - 195 A - 230 V - with cart On Sale Seconds | (24) €139.00 Gasless MIG Welder - 130 A - 60 % duty cycle - TIG Liftarc - MMA |
Dimensions (LxWxH) | ||
53 x 21.5 x 40.5 cm | 53 x 25 x 46 cm | 35 x 15 x 22 cm |
2T / 4T | ||
Yes | No | No |
Anti Stick | ||
Yes | No | Yes |
ARC-Force | ||
Yes | No | Yes |
Automatic wire feed | ||
- | - | Yes |
Colour | ||
- | - | Red |
Duty cycle [%] | ||
- | - | 60 |
Effective input current [A] | ||
- | - | MMA 10.5 MIG 10.5 TIG 8.8 |
Efficiency [%] | ||
- | - | 80 |
Flux Cored Wire | ||
Yes | Yes | - |
Gas magnetic valve | ||
Yes | No | No |
Ground cable | ||
- | 1.2 m | 1.2 m |
Hot Start | ||
Yes | No | Yes |
Insulation class | ||
- | - | H |
Inverter type | ||
- | - | IGBT |
IP protection class | ||
IP21S | - | IP21S |
Material | ||
- | - | Steel |
Max diameter of the wire spool | ||
- | 200 mm | 15 mm |
Maximum input current [A] | ||
- | - | MMA 19 MIG 19 TIG 16 |
Maximum input power [kVA] | ||
- | - | MMA 4.37 MIG 4.37 TIG 3.68 |
Memory function | ||
- | - | Yes |
MIG/MAG cable | ||
- | 1.25 m | 2 m |
MIG/MAG welding current [A] | ||
- | - | 20 - 130 |
MMA cable | ||
- | - | 1.8 m |
MMA function | ||
Yes | Yes | Yes |
MMA welding current [A] | ||
- | - | 20 - 120 |
Open circuit voltage | ||
- | - | 62 V |
Over current protection | ||
- | - | Yes |
Overheat protection | ||
- | - | Yes |
Overvoltage protection | ||
No | - | Yes |
Power factor | ||
- | - | 0.82 |
Recommended electrodes diameter [mm] | ||
- | - | 1.6 - 3.2 |
Shipping dimensions (LxWxH) | ||
61 x 30 x 45.5 cm | 65.5 x 36.5 x 57 cm | 40 x 25 x 26 cm |
Shipping weight | ||
16.7 kg | 37.87 kg | 6.8 kg |
Soft start | ||
- | - | Yes |
SYNERGY | ||
- | - | Yes |
TIG welding current [A] | ||
- | - | 10 - 130 |
Voltage [V] | ||
230 | 230 | 230 |
Voltage Reduction Device (VRD) | ||
- | - | Yes |
Water cooling | ||
No | No | No |
Weight | ||
15 kg | 32.2 kg | 6 kg |
Welding methods | ||
- | - | FLUX TIG Lift MMA |
Wire diameter [mm] | ||
- | 0,6 - 0,8 | Φ0.8 / 0.9 / 1.0 |
Wire speed [m/min] | ||
- | 14 | 2 - 14 |
Compare more attributes
Delivery package

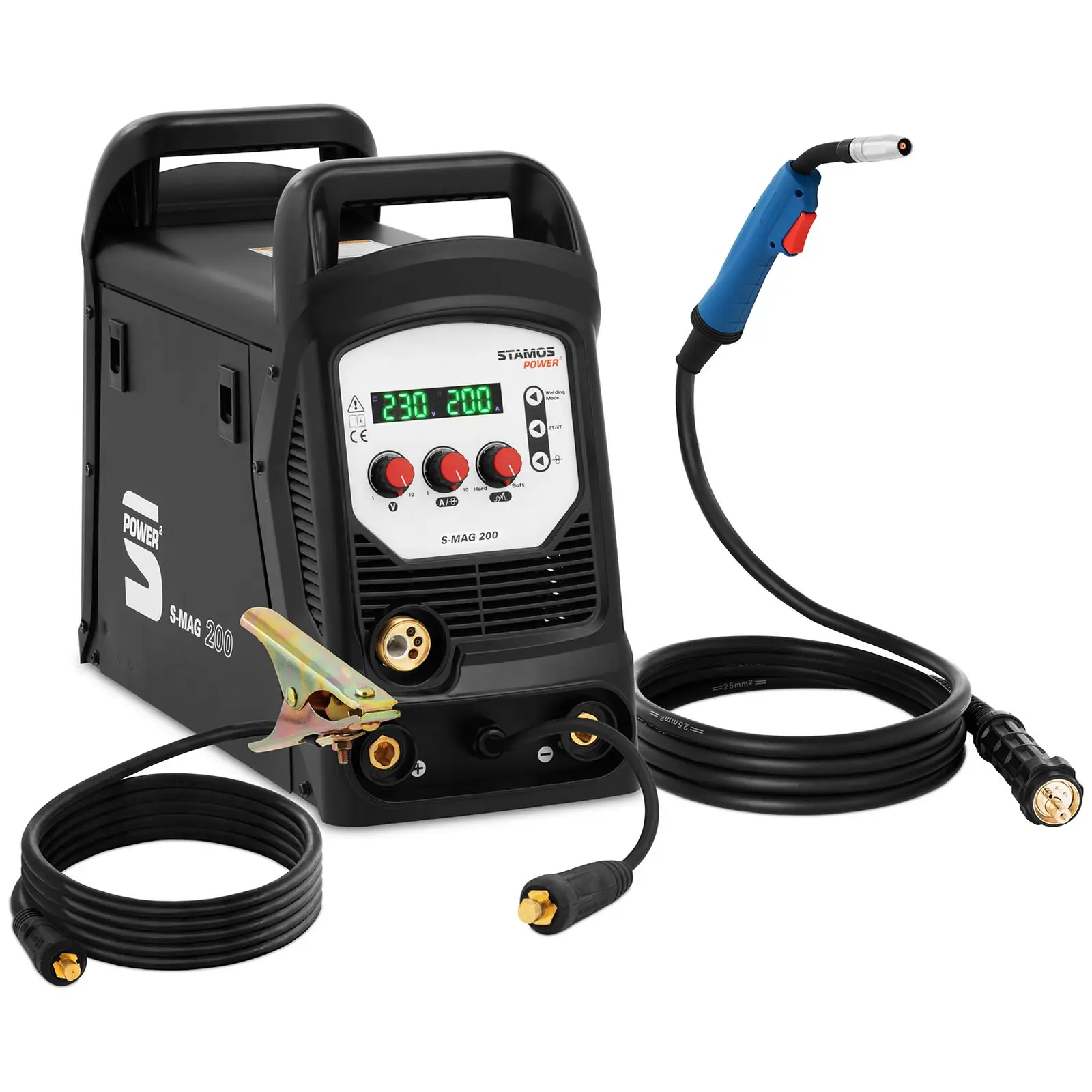

- MIG/MAG Welding Machine S-MAG 200
- MIG / MAG welding torch with cable (5 m)
- Earth cable (3 m)
- Power cable (2.7 m)
- Instruction manual
This item is currently out of stock.
Recommended alternatives, selected based on your interest:
Product Description
Strong performance combined with easy handling – the MIG MAG welding machine from Stamos Power ²
The MIG / MAG welding machine S-MAG 200 is equipped with powerful IGBT inverter technology and offers maximum flexibility and quality. The infinitely variable regulation of the welding current up to 200 A ensures optimum welding seams for a wide variety of welding jobs. The MIG welding machine is supplemented with the option for electrode welding, allowing you to use it outdoors without problems even in windy conditions. If you connect a TIG Liftarc welding torch, you can use the TIG welding method with the device.
