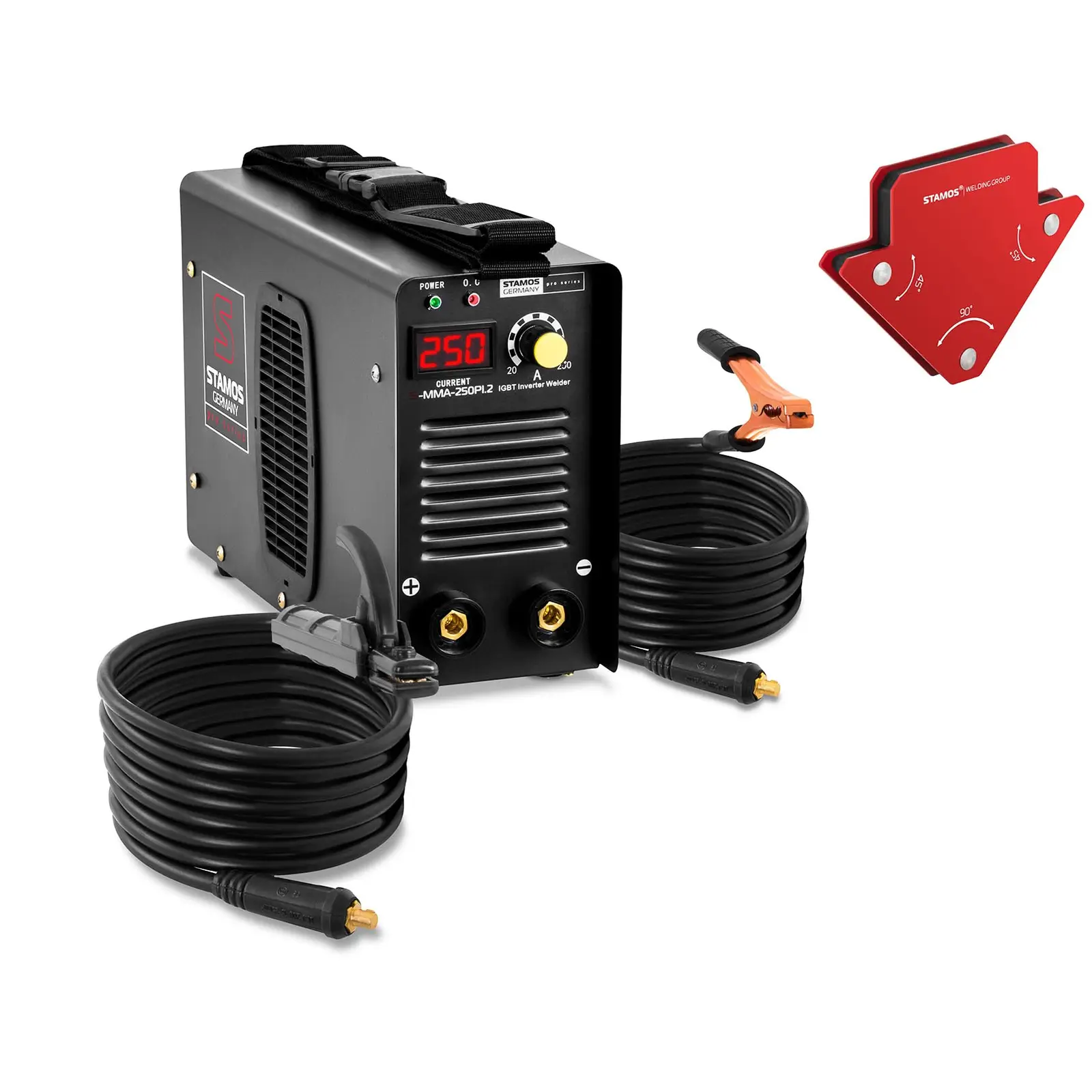

Set: Electrode Welding Machine with 2 Magnetic Welding Holders - 250 A - 8 m cable - hot start
Manufacturer: Stamos Germany | item number: EX18000469 | Model: S-MMA-250PI.2-SET-1
Prices incl. VAT
-
Free shipment to Ireland
?Ready to ship today,
Delivery time appr. 4-7 workdays -
30 days return service
? -
3 years guarantee
Ready for immediate shipping When ordering and making payment within the next 0 hours 44 mins , shipping will happen today.
Product highlights
- MMA / Pro series
- Output: 250 A
- 8 m cable
- Electrodes up to Ø 5 mm
- 2 magnetic welding angles
- Powerful—weld with up to 250 A welding current
- Incomparable mobility—8 m-long MMA and grounding cables
- Precise—easy-to-read LED display
- Large electrode holder—for electrodes up to 5 mm in diameter
- Practical—2 welding holders for optimal welding control
Professional electrode welding machine with practical welding angle
The electrode welder S-MMA-250PI.2 with cutting-edge IGBT inverter technology from Stamos Germany is an especially powerful MMA welding machine with up to 250 A. Thanks to its high performance and extra-long 8 m-long cable, this welding machine is perfect for welding in workshops or production halls, as well as for mobile use for outdoor repair and maintenance work. The two magnetic welding holders included in the set help to precisely connect workpieces.
More flexibility with the electrode welding machine from the Pro series
With a duty cycle of 60 percent, the welding current has a maximum power of 250 A. If you turn the power down to 194 A, then you can weld at just under 200 A without interruption. You can comfortably and steplessly adjust the welding current between 20 and 250 A, clearly shown on the LED display, with a convenient control dial. With its high performance, the welder can even weld thicker metals up to 10 mm quickly and precisely.
The MMA welder is equipped with 8 m-long MMA and grounding cables. The unique range of the welding cable gives the device maximum flexibility while welding. The MMA welding clamp can grasp even large electrodes with a diameter of up to 5 mm. With the MMA welder, you can weld materials such as steel, iron, cast iron, nickel or copper from 1,5 to 10 mm thick.
The hot start function on the electrode welder ensures an automatic and short-term increase of the welding current at the start of the welding process. This ensures that the electrode doesn't stick and creates a clean, stable weld from the very first moment.
The air cooling system and overheat protection provide this device with long-lasting reliability and durability. The comfortable shoulder strap and light weight ensure additional mobility.
Problem-free work thanks to free hands
The magnetic welding holders SWG-MWH-S are specially designed for use on metal elements and ensure a strong magnetic connection between the individual components without having to hold them. The robust magnetic welding angles can be attached at different angles (45°, 90°, 135°) and thus serve as optimal support for metal parts up to 11 kg during welding. The welding holders are equipped with a solid steel cover, guaranteeing durability. The set includes two holders.
- Electrode welding machine S-MMA-250PI.2
- MMA cable / power cable with electrode holder (8 m)
- Grounding cable (3 m)
- Power cord (2 m)
- Instruction manual
- 2 magnetic welding holders SWG-MWH-S
IGBT = insulated-gate bipolar transistor. IGBT is a bipolar transistor with an insulated gate electrode. This semi-conducting device is being increasingly used in power electronics because it combines the advantages of two transistor types: the easy controls of the field effect transistor and the fast switching and high breakdown voltage of the bipolar transistor. The IGBT also offers some robustness against short circuits because it limits the electrical continuity. IGBTs are a further development of MOSFET technology.
Show moreShow lessPowerful fans ensure an optimal removal of heat from the unit.
On the back of every welding machine is a screw with an earthing mark. Before use, earth the unit via a cross-section cable, which must be at least 6 mm².
Through automatically boosting the tension at the ignition of the arc, this function facilitates the electrical arc ignition. After ignition, the unit automatically returns to the pre-set voltage.
Show moreShow lessElectrode welding with a coated electrode.
Shows the welding / cutting parameters.
The LED light indicates overheating or a malfunction.
Where can I find a suitable welding hood?
You can find welding helmets in expondo's online shop under the category Welders, subcategory Welding Clothing, where you can browse a wide selection of helmets.
Can I use the magnetic angles on aluminium?
No, aluminium is a metal without magnetic properties and won't react to the magnetic welding angle.
