Product Number: EX10031045

|

Model: SBS-LCC-7000H

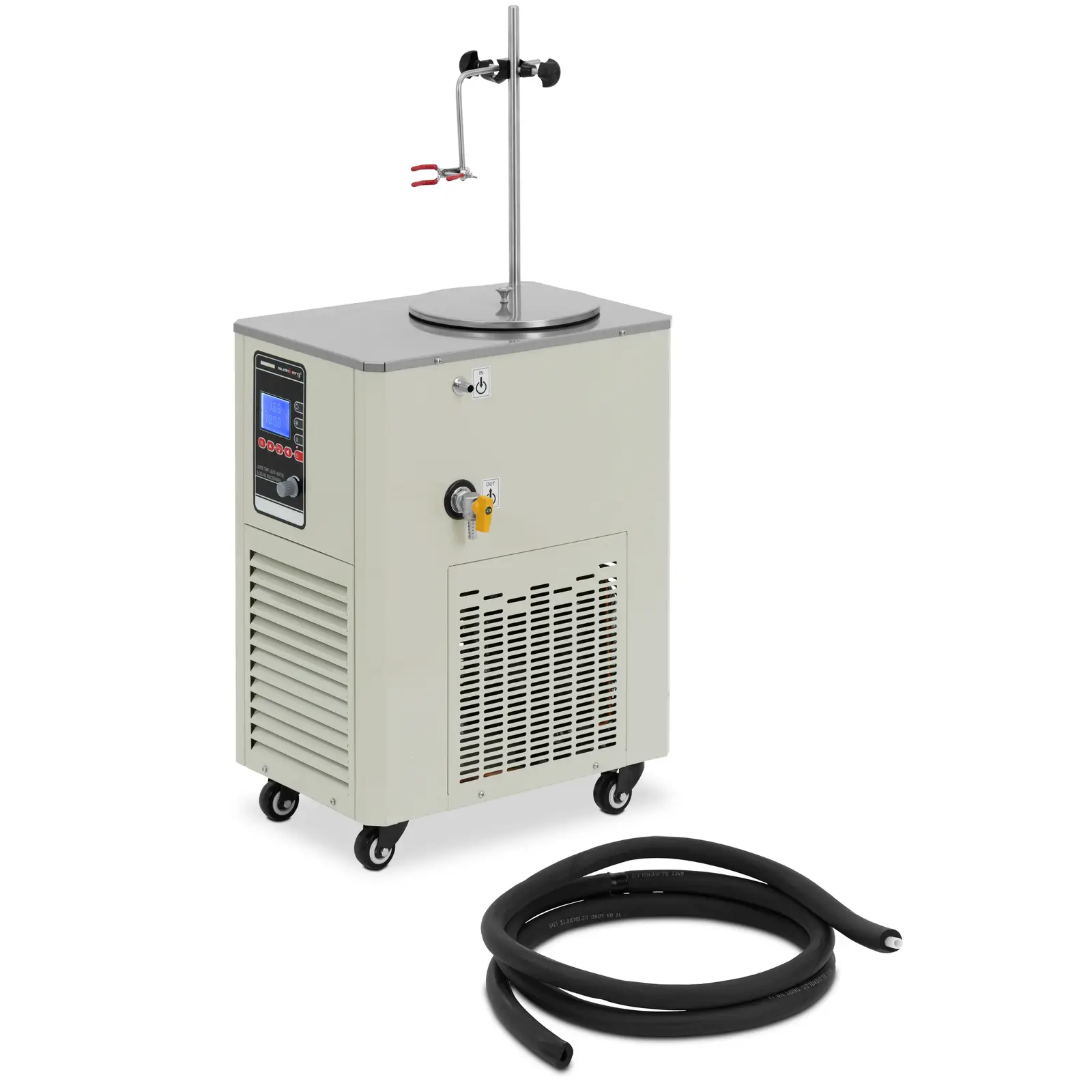

Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min

Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Delayed start: Yes)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Compressor power: 2430 W)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Capacity: 5 l)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Circulating pump flow: 20 l/min)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Delayed start: Yes)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Compressor power: 2430 W)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Capacity: 5 l)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Circulating pump flow: 20 l/min)
1/5
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Delayed start: Yes)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Compressor power: 2430 W)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Capacity: 5 l)
Recirculating Chiller - compressor: 2430 W - -20 - 99 °C - 20 l/min (Circulating pump flow: 20 l/min)
On Sale
€2,340.00€2,390.00
Limited time offer€1,902.44 net (23% VAT excluded)

Lowest price in the 30 days before the discount: €2,299.00

Volume discount

Qty
Discount
Per item (gross)
3+
5%
€2,223.00
5+
10%
€2,106.00
10+
15%
€1,989.00
In stock
FREE DELIVERYapprox. Thursday, 5 March
Lowest price guaranteed
Steinberg Systems logo
Key features
  • Precise – the recirculating chiller features a PID controller, controlled by a microprocessor, which maintains a constant temperature with an accuracy of +/- 0.2°C
  • Simple – the recirculating chiller is controlled via an user-friendly LCD display and low-maintenance stainless steel tanks
  • Efficient – the laboratory chiller uses a powerful 2430 W compressor and an eco-friendly R290 refrigerant
  • Reliable – the recirculation cooler ensures consistent, continuous cooling with a circulation speed of 20 l/min
  • Versatile – connect the recirculating chiller to various laboratory devices like rotary evaporators, fermentation tanks, or lasers
  • Safe – the laboratory chiller is safeguarded against corrosion with premium stainless steel components, supplemented by overheat and overcurrent protection for maximum safety
Delivery details
Premium Guarantee

Technical details

Delayed start
Yes
Compressor power
2430 W
Capacity
5 l
Circulating pump flow
20 l/min
Circulating pump power
100 W
Overheat protection
Yes
Temperature accuracy
0.2 °C
Over current protection
Yes
Current [A]
20
Material
Stainless steel
Galvanised sheet iron
Rotational speed [rpm]
100 - 1000
Colour
White
Cooling capacity [W]
320 - 1150
Display
LCD
Voltage [V]
110-220
Relative humidity [%]
≤60
Tank dimensions [cm]
Ø 25.5 x 13
Circulating pump lift [m]
4 - 6
Temperature range [°C]
- 20 - 99
Operating Temperature [°C]
≤25
Refrigerant - Cooling Agent
R290
Dimensions (LxWxH)
50.5 x 38.5 x 101 cm
Weight
42.4 kg
Shipping dimensions (LxWxH)
57 x 43 x 71 cm
Shipping weight
53.5 kg

Delivery package

  • Recirculating Chiller SBS-LCC-7000H:
  • Insulating hose
  • Angle valve
  • Cover for tank
  • Fuse
  • Clamp
  • Bracket
  • Magnetic stirring rod

Product Description

Rely on precision with the recirculating chiller from Steinberg Systems

The Steinberg Systems circulation cooler provides a robust solution for various cooling needs in laboratory or industrial contexts. It can be used to maintain precise temperatures in equipment like rotary evaporators or to reduce heat build-up in lasers. Thanks to short cooling times and high efficiency, the liquid chiller with closed compressor cooling and an intelligent control system is an efficient and cost-saving alternative to cooling with tap water.

The intuitive laboratory cooler with a powerful compressor

With a high accuracy of 0.2°C, the laboratory chiller delivers outstanding performance. You can easily monitor all values through the intuitive control panel featuring an LCD display. Managed by a microprocessor, the PID controller guarantees the precision of the set temperature from -20 - 99 °C. The built-in compressor, using eco-friendly R290 coolant, provides quick and dependable cooling. At a circulation speed of 20 l/min, the circulation cooler ensures reliable and uniform cooling of all connected devices.

The recirculating cooler is made of stainless steel and galvanised sheet steel. This material mix is particularly corrosion-resistant and therefore optimal for use in the laboratory or other environments where liquids are employed. The appliance is also protected against overheating or overcurrent. Overall, the recirculating chiller is highly durable and reliable for daily use.

The compact & quiet recirculating chiller

The laboratory cooler's compact design requires minimal space, making it suitable for small work surfaces. It is ideal for use in medical laboratories, healthcare facilities, the chemical industry, or the industrial production of food. Across the board, it delivers exceptional cooling performance and quiet operation.
