Product Number: EX20021417
|Model: S-PLASMA50U

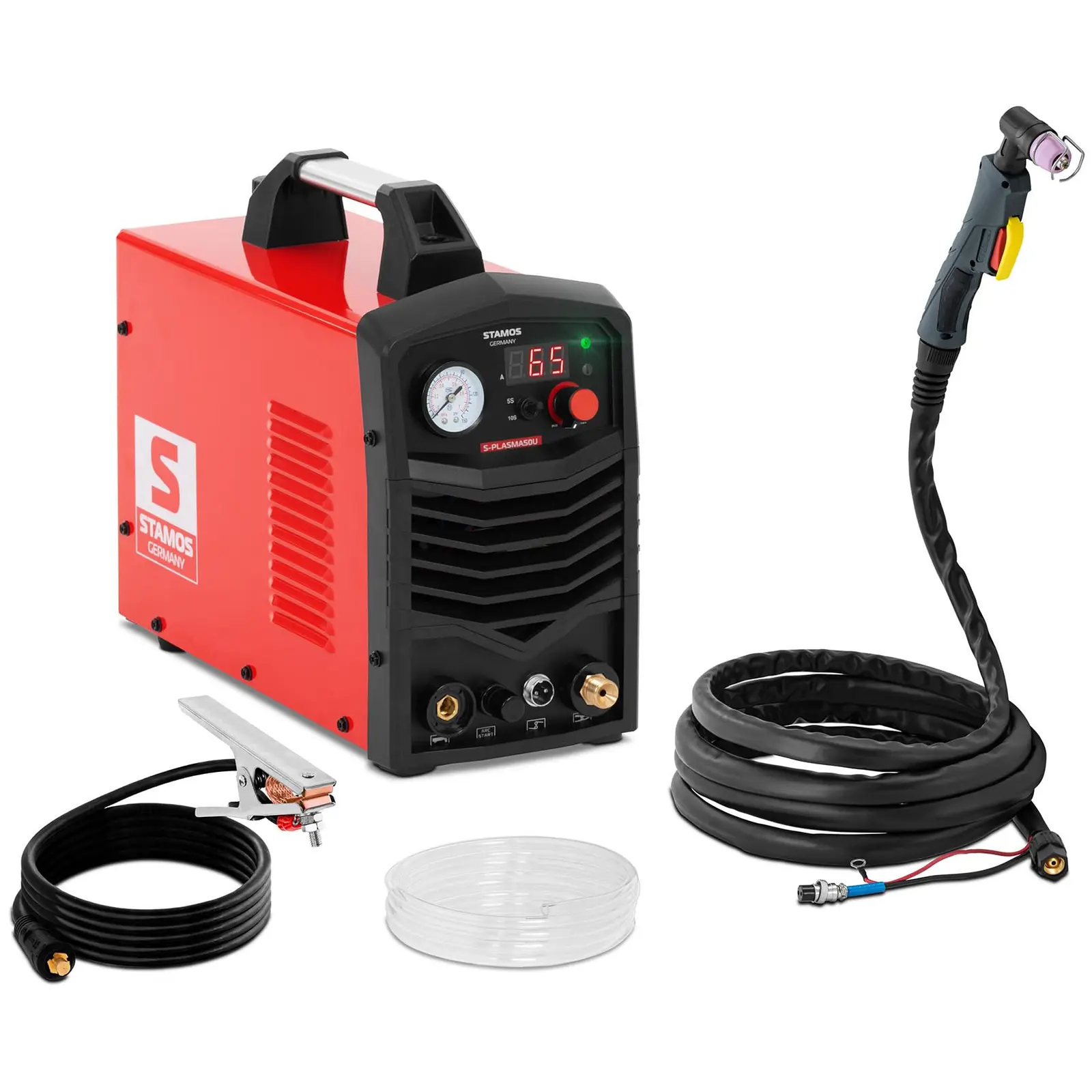

Factory second Plasma Cutter - 50 A - duty cycle 100 % - 230 V - IGBT - HF ignition
![Factory second Plasma Cutter - 50 A - duty cycle 100 % - 230 V - IGBT - HF ignition (Duty cycle [%]: 40)](https://assets.expondo.com/asset/product_photos/10021417_photo_5?twic=v1/contain=104x104)
![Factory second Plasma Cutter - 50 A - duty cycle 100 % - 230 V - IGBT - HF ignition (Duty cycle [%]: 40)](https://assets.expondo.com/asset/product_photos/10021417_photo_5?twic=v1/contain=1024x500 "Factory second Plasma Cutter - 50 A - duty cycle 100 % - 230 V - IGBT - HF ignition (Duty cycle [%]: 40)")
![Factory second Plasma Cutter - 50 A - duty cycle 100 % - 230 V - IGBT - HF ignition (Duty cycle [%]: 40)](https://assets.expondo.com/asset/product_photos/10021417_photo_5?twic=v1/contain=40x40){kind=small}
On Sale
Seconds
Our factory seconds are generally refurbished customer returns or former display items. The products may have cosmetic defects but are technically flawless. As usual, we provide the normal right of return and warranty.
€194.00€243.00
Lowest price in the 30 days before the discount: €269.00
Key features
- Powerful – 50 A max cutting current with a 100 % duty cycle
- User-friendly – control panel with LED display, pressure gauge, and dial
- Effective – with modern IGBT inverter and HF ignition
- Precise – fast, distortion-free cuts up to 15 mm thick
- Mobile – compact dimensions and carrying handle
Delivery details
Premium Guarantee
User Manual
Complete your set
Technical details
CNC
No
2T / 4T
No
Power cord
2 m
Duty cycle [%]
40
Frequency [Hz]
50
Air flow
110 l/min
Power factor
0.73
Cutting width
5 mm
Inverter type
IGBT
Soft start
Yes
Water cooling
No
ST-guard housing
Yes
Insulation class
F
Plasma cable
4 m
Air pressure [bar]
4 - 6
Gas test function
No
Built-in compressor
No
Ground cable
2 m
Suitable for rust film
Yes
Rated Input current [A]
21
Air pressure hose length [m]
3
Ignition Plasma
HF
Maximum gas after-flow [s]
10
Suitable for painted sheets
Yes
Max cutting thickness
15 mm
Material
ABS plastic
Steel
Colour
Black
Red
Efficiency [%]
90
Safety measures
Overheating
Overcurrent protection
Voltage [V]
230
Output current [A]
25 - 50
Maximum input power [kVA]
8.74
Maximum input current [A]
38
IP protection class
IP21S
Dimensions (LxWxH)
40 x 30 x 16 cm
Weight
8.6 kg
Shipping dimensions (LxWxH)
46 x 28 x 38 cm
Shipping weight
9.8 kg
Delivery package
- Plasma Cutter S-PLASMA50U:
- Cutting torch AG60 with hose package (4 m)
- Earth clamp (2 m)
- Pressure regulator
- Instruction manual
Product Description
The compact plasma cutter, powered by IGBT technology
With the Stamos Germany plasma cutter, you're in total control of your work. A clear control panel with LED and pressure gauge informs you about the cutting parameters at a glance. Simply set the pressure and cutting current as you see fit. With the right setting, you can cut a wide variety of metals such as steel, stainless steel, copper or aluminium precisely and quickly.
This powerful plasma cutter delivers clean, precise cuts
Set the cutting current on the plasma cutter with a control dial between 25 and 50 A. All values are clearly displayed on the LED screen. At peak power, the plasma cutter slices through workpieces up to 15 mm thick.
Control the air pressure with a regulator featuring a safety lock. This prevents accidental air pressure adjustments. Read the current value on the integrated pressure gauge. The perfect balance of air pressure and welding current delivers clean, precise cuts.
The IGBT inverter delivers high-power voltage via PWM technology while keeping weight and size to a minimum. This makes the portable plasma cutter, which also features a carrying handle, even more effective. Whether on a construction site, in a workshop, or maintaining railings – you won’t want to work without this powerhouse!
With high-frequency ignition, the torch starts instantly, and the pilot arc ensures uninterrupted cutting through grids and grates. To prevent oxidation or deformation on the workpiece after a cut, select a gas after-flow time of 5 or 10 s. By letting the air run on, you can also cool the burner and avoid damage. The base unit is equipped with a powerful fan that avoids overheating.
Connect the Stamos Germany plasma cutter from to a 230 V power source with the 2 m cable. This allows you to use it as a flexible plasma cutter in automotive workshops, commercial metalworking operations and industrial production. In addition, the plasma cutter also supports DIY-ers when it comes to demanding renovation and repair projects.
