Product Number: EX10061878
|Model: MSW-OP100

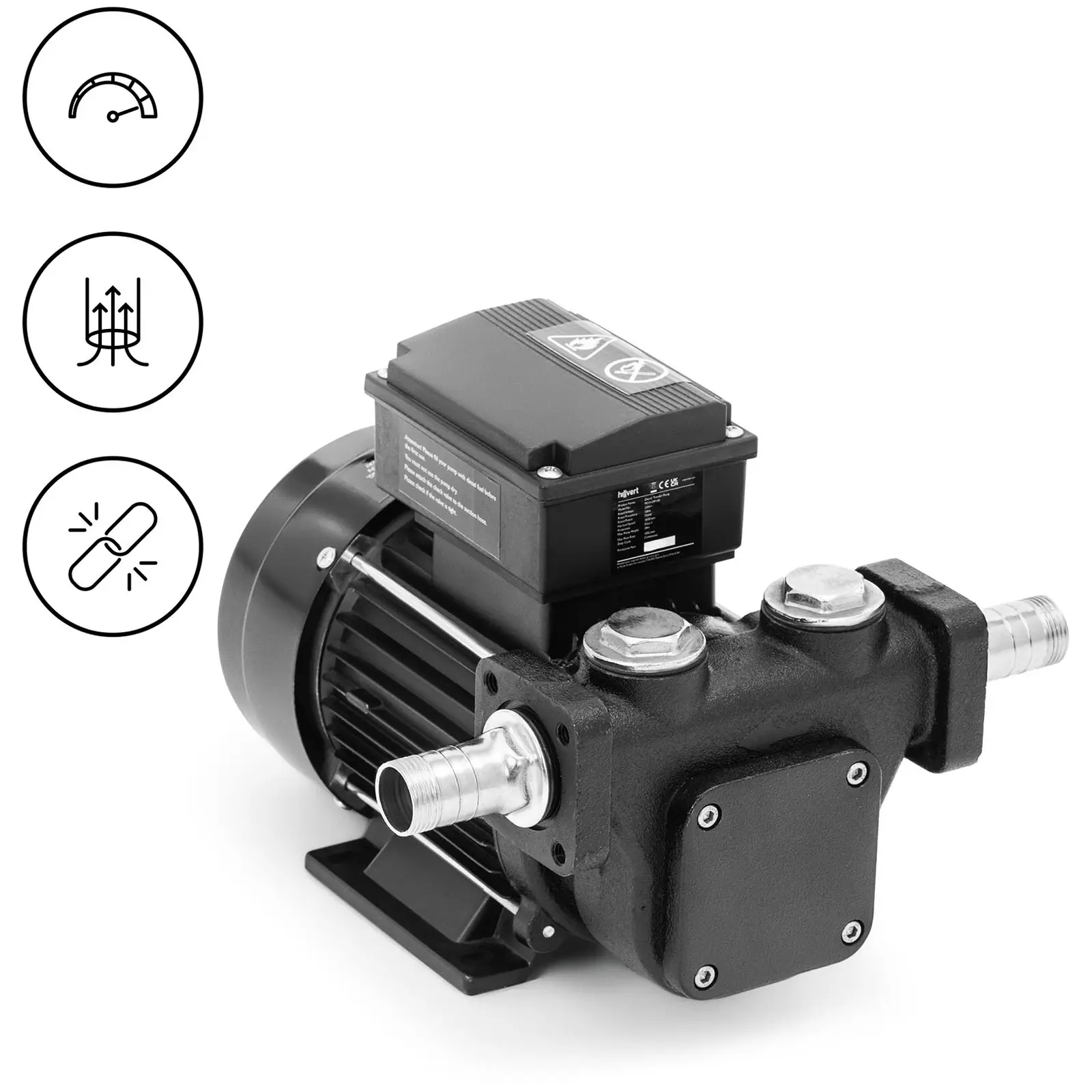

Fuel Transfer Pump - 230 V - 100 L/min - 750 W
On Sale
€161.00 €169.00
Lowest price in the 30 days before the discount: €169.00
Volume discount
Qty
Discount
Per item (gross)
3+
3%
€156.17
5+
6%
€151.34
10+
8%
€148.12
Key features
- Powerful – flow rate of 100 L/min thanks to 750 W motor with 2850 rpm
- Versatile – suitable for filling cars, trucks, agricultural and construction machinery
- Hard-wearing – can run dry for long periods without damage
- Simple – easy to use thanks to self-priming pump
- Portable – compact format and light weight allow for flexible work in different locations
Delivery details
Premium Guarantee
User Manual
Great Pump
Does what it says and more. Come with all the bits. Really powerful unit, in this case ideal for emptying our 5000 litre fuel tanks in a very short time. Good delivery with a good priced unit. Well recommended.
Complete your set
Technical details
 | |  |  |  |  |
|---|---|---|---|---|---|
| €161.00 Fuel Transfer Pump - 230 V - 100 L/min - 750 W On Sale Currently seen | €129.00 Factory second Fuel Transfer Pump - 230 V - 100 L/min - 750 W On Sale Seconds | €98.00 Fuel Transfer Pump - 12 V - 40 L/min - incl. accessories On Sale Popular | €192.00 Fuel Transfer Pump with Counter - 60 L/min On Sale | €451.00 Mobile petrol station - with tap and wheels - 120 l On Sale | €493.00 Mobile filling station - with electric pump, tap and wheels - 120 l - 40 l/min On Sale |
Dimensions (LxWxH) | |||||
28 x 16.5 x 20.6 cm | 28 x 16.5 x 20.6 cm | 20 x 13 x 15 cm | 34.5 x 30.5 x 24 cm | 54 x 45 x 106.5 cm | 54 x 43 x 106.5 cm |
Adapter inlet diameter | |||||
31.6mm 1-1/4" | 31.6mm 1-1/4" | 19mm 3/4" | 25mm 1" | 30mm 1-1/8" | 26mm G3/4'' |
Adapter outlet diameter | |||||
25.4mm 1" | 25.4mm 1" | 19mm 3/4" | 25mm 1" | 25mm 1" | 33mm G1'' |
Bypass valve | |||||
Yes | Yes | No | No | No | Yes |
Cable length | |||||
2 m | 2 m | 1.5 m | 2 m | - | 3.5 m |
Capacity | |||||
- | - | - | - | 120 l | 120 l |
Colour | |||||
Black | Black | Black | Black | Red | Red |
Exhaust hose diameter | |||||
- | - | 20 mm | 28 mm | 25 mm | 19 mm |
Exhaust hose length | |||||
- | - | 4 m | 4 m | 2 m | 4 m |
Flow rate | |||||
100 l/min | 100 l/min | 40 l/min | 60 l/min | 20 l/min | 37 l/min |
IP protection class | |||||
IPX4 | IPX4 | IP55 | IP55 | - | IPX4 |
Material | |||||
Cast iron Steel | Cast iron Steel | Iron | Iron | Rubber PVC PE Plastic Cast iron Steel | Rubber Aluminium PE Cast iron Steel |
Material thickness | |||||
- | - | - | - | 4 mm | 4 mm |
Max depth | |||||
3 m | 3 m | 2 m | 2 m | 2 m | 1 m |
Max. head lift | |||||
25 m | 25 m | 8 m | 15 m | 2 m | 7 m |
Power [W] | |||||
750 | 750 | 155 | 600 | - | 110 / 150 |
Pressure | |||||
2.5 Bar | 2.5 Bar | 3 Bar | 3 Bar | - | 0.7 Bar |
Pump type | |||||
Electric | Electric | Electric | Electric | Manual | Electric |
Rotational speed [rpm] | |||||
2850 | 2850 | 2800 | 2800 | - | - |
Self-priming | |||||
Yes | Yes | Yes | Yes | No | Yes |
Shipping dimensions (LxWxH) | |||||
37 x 26 x 33 cm | 37 x 26 x 33 cm | 37 x 33 x 25 cm | 45 x 39 x 36 cm | 107 x 56 x 46 cm | 107 x 56 x 47 cm |
Shipping weight | |||||
10.9 kg | 10.9 kg | 8.1 kg | 18.4 kg | 23.9 kg | 26.8 kg |
Suction | |||||
3 m | 3 m | 5 m | 5 m | 1 m | - |
Suction hose diameter | |||||
- | - | 25 mm | 30 mm | 25 mm | 19 mm |
Suction hose length | |||||
3 m | 3 m | 2 m | 2 m | 0.7 m | 0.7 m |
Types of pumped liquid | |||||
Diesel Paraffin | Diesel Paraffin | Diesel Paraffin | Diesel Paraffin | Paraffin Gasoline | Diesel Paraffin |
Voltage [V] | |||||
230 | 230 | 12 | 230 | - | 230 |
Weight | |||||
10.15 kg | 10.15 kg | 7.12 kg | 16.4 kg | 21 kg | 23.9 kg |
Wheels dimension ["] | |||||
- | - | - | - | 10 | 10 |
Compare more attributes
Delivery package
- Fuel Transfer Pump MSW-OP100
- Instruction manual
Product Description
Self-priming fuel transfer pump with a flow rate of 100 L/min
MSW's fuel transfer pump is the mobile solution for when you want to transfer diesel, paraffin or oil or remove it from a tank. The oil transfer pump can be used in a workshop, filling station or vehicle fleet for filling agricultural vehicles.
Flexible working thanks to mobile diesel transfer pump from MSW
The diesel transfer pump's 750 W motor reaches a flow rate of 100 L/hr, so you can fill vehicles with fuel quickly and reliably. It can also be used to effortlessly transfer oil into another tank. The working pressure is 2.5 bar at a head of up to 25 m.
Since the transfer pump is designed to pump diesel, bio-diesel, paraffin as well as oil, it can be used in many different ways. You can use it to fill numerous commercial vehicles such as forestry and agricultural machines, as well as construction machines, lorries or cars.
The oil transfer pump is self-priming, which makes it significantly easier to use. It has a suction capacity of up to 3 m, enabling you to empty even deep tanks with the pump. There is no danger of damage if the pump should run dry during operation.
