Product Number: EX20280045
|Model: WIE-PM-3000

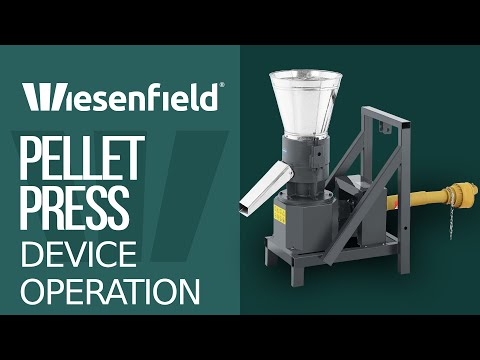

Factory second Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers
![Factory second Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)](https://assets.expondo.com/asset/product_photos/10280045_photo_6?twic=v1/contain=104x104)
![Factory second Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)](https://assets.expondo.com/asset/product_photos/10280045_photo_6?twic=v1/contain=1024x500 "Factory second Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)")
![Factory second Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers (Rotary speed [rpm]: 540)](https://assets.expondo.com/asset/product_photos/10280045_photo_6?twic=v1/contain=40x40){kind=small}
On Sale
Seconds
Our factory seconds are generally refurbished customer returns or former display items. The products may have cosmetic defects but are technically flawless. As usual, we provide the normal right of return and warranty.
€1,538.00€1,922.00
Lowest price in the 30 days before the discount: €1,986.00
Key features
- Versatile – creates pellets for feed, fertiliser, or fuel from organic materials
- High productivity – processes 300 to 400 kg/h of feed or 130 - 180 kg/h of wood chips
- Powerful processing – driven by a PTO shaft via the auxiliary drive of a tractor (15 to 28 HP recommended)
- Sustainable production – extended pellet lifespan due to heating at 60 - 80 °C
- User-friendly – compact and simple-to-operate machine
- cost-efficient pellet production – twin-roller technology relies on a mechanically simplified design for reliable and low-maintenance operation with low acquisition and operating costs
Delivery details
Premium Guarantee
User Manual
Technical details
 |  |
|---|---|
(0) €1,538.00 Factory second Pellet Machine - max. 400 kg/h - Ø 230 mm - 2 rollers On Sale Seconds Currently seen | (0) €5,634.00 Factory second Pellet Machine - 900 - 1100 kg/h - 30000 W - Ø 400 mm - 2 rollers On Sale Seconds |
Dimensions (LxWxH) | |
88 x 64 x 110 cm | 167 x 56.5 x 126.5 cm |
Colour | |
Grey | Grey |
Continuous operating time [h] | |
24 | 8 - 10 |
Design | |
Fixed roller type | Fixed matrix type |
Die diameter | |
230 mm | 400 mm |
Die hole specification | |
6 mm | 6 mm |
Driveshaft | |
PTO | 3-phasing |
Emergency stop | |
No | Yes |
Feed production capacity [kg/h] | |
300 - 400 | 900 - 1100 |
Hopper size [mm] | |
Ø380 | Ø450 |
IP protection class | |
- | IP44 |
Lubrication system | |
Manual | Manual |
Material | |
Cast iron Galvanised steel | Carbon steel Cast iron |
Max power | |
- | 30 kW |
Number of dies | |
1 | 1 |
Number of rollers | |
1 | 1 |
Operating Temperature [°C] | |
60 - 80 | 60 - 80 |
Rotary speed [rpm] | |
540 | 1475 |
Sawdust capacity [kg/h] | |
130 - 180 | 400 - 450 |
Shipping dimensions (LxWxH) | |
77 x 54 x 103 cm | 161 x 69 x 135 cm |
Shipping weight | |
169 kg | 696 kg |
Suitable for or processable materials | |
Crushed bark Woodchips Sawdust Straw Leaves Carton Peas Maize Soy Wheat Oats Hay Sunflower seeds Wool | Crushed bark Woodchips Sawdust Straw Leaves Carton Peas Maize Soy Wheat Oats Hay Sunflower seeds Wool |
Voltage [V] | |
- | 400 |
Weight | |
147 kg | 660 kg |
Compare more attributes
Delivery package
- Pellet Machine WIE-PM-3000
- Assembly materials
Product Description
The animal feed pellet press with PTO creates big batches of feed pellets in no time
With the pellet press from Wiesenfield, you can produce up to 400 kg of feed sticks per hour or process up to 180 kg/h of wood chips. Each piece of the raw material should be less than 6 mm in size. This way, you can produce large quantities of pellets for feeding, fertilising, or heating at a low cost. The cylindrical feed pellets contain only the ingredients that correspond to your recipe.
The industrial-grade pellet machine from Wiesenfield
The inserted material is pressed at high pressure through a 230 mm diameter die. The application of pressure and temperatures of 60 - 80 °C generates 6 mm diameter pellets. Heat increases the longevity of the pellets. Thanks to the practical discharge chute made of galvanised sheet steel, you can fill the finished pellets directly into bags or other containers.
The efficient pellet press with user-friendly design
The pellet press is driven by a PTO shaft via the auxiliary drive of a tractor or other utility vehicle with a power rating of 15 to 28 HP. A protective grid (37 x 37 mm mesh) in the hopper prevents foreign objects or hands from entering the press. The durable pellet machine, crafted from solid cast iron, will serve you faithfully for years to come: A must-have for any agricultural business!
Note: Make sure to include the pellet binder in your order (Product number: 10530000). The wheat starch powder makes pressing and storing your pellets easier.
Note on wearing parts: You can use the built-in dies and rollers for pellet presses for up to 300 hours. If they are worn, replace them promptly. Wear parts are excluded from the statutory warranty and the extended warranty. You can find corresponding spare parts in the expondo online shop.
Customers interested in this product also viewed
Ratings & reviews
Ratings & reviews
Sort by :
Frequently asked questions
What is the capacity of the feed press?
The pellet machine processes up to 400 kg of feed or up to 180 kg of wood chips per hour into finished pellets.
