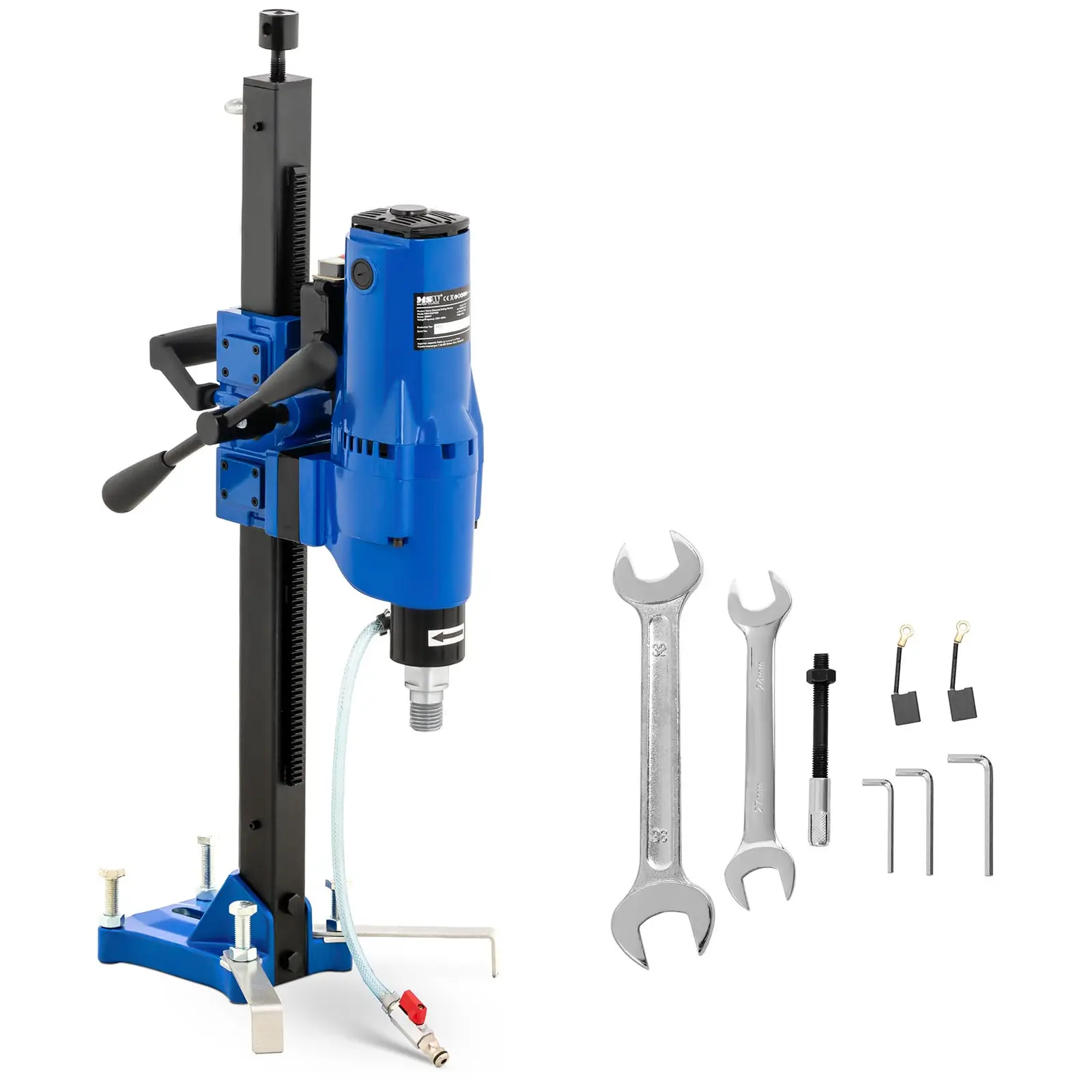

The handy core drilling machine MSW-DDM300 from MSW reliably drill holes in hard construction materials such as concrete, masonry or asphalt with the help of diamond core bits. It can also successfully drill large-calibre holes up to 300 mm in diameter. The integrated residual current protection circuit provides protection for both the user and the core drilling machine.

On a construction site, time is money. Accordingly, there are high requirements when it comes to the devices you use. With 2,800 W and a maximum speed of 950 rpm, the diamond core drill from MSW provides generous power reserves for core drillings up to 300 mm in diameter.

You can work with a wide variety of diamond drills. The diamond coring machine with stand masters everything from holes in concrete to reinforced concrete, cement, masonry, asphalt and stone. You can drill holes both horizontally and vertically, depending on your needs. The speed can be set to between 500 and 950 rpm depending on your needs. Both wet and dry drilling is possible thanks to a water connector.

The stand's precise guide rail makes it possible to adapt your drilling to the material in question. The generous lifting height of 30 cm allows you to drill deeply even in widely different materials. The drill is guided by a sliding T-lever which allows you to precisely control the force applied to the spindle and the diamond drill.

The equally solid and compact powerhouse can be easily controlled via an intuitive on/off switch on the control panel. The residual current protection circuit (PRCD – Portable Residual Current Device) integrated into the cable provides protection against accidents for the user as well as the drill. Should there be a short circuit in the drill or cable, operation immediately ceases. A restart lock provides further protection in case of power failure .

You can easily replace the carbon brushes in the core drilling machine. Easy access is ensured by means of the easily removable cover. A spare carbon brush and assembly tool are included in delivery.
