Product Number: EX10280610
|Model: WIE-SC-200

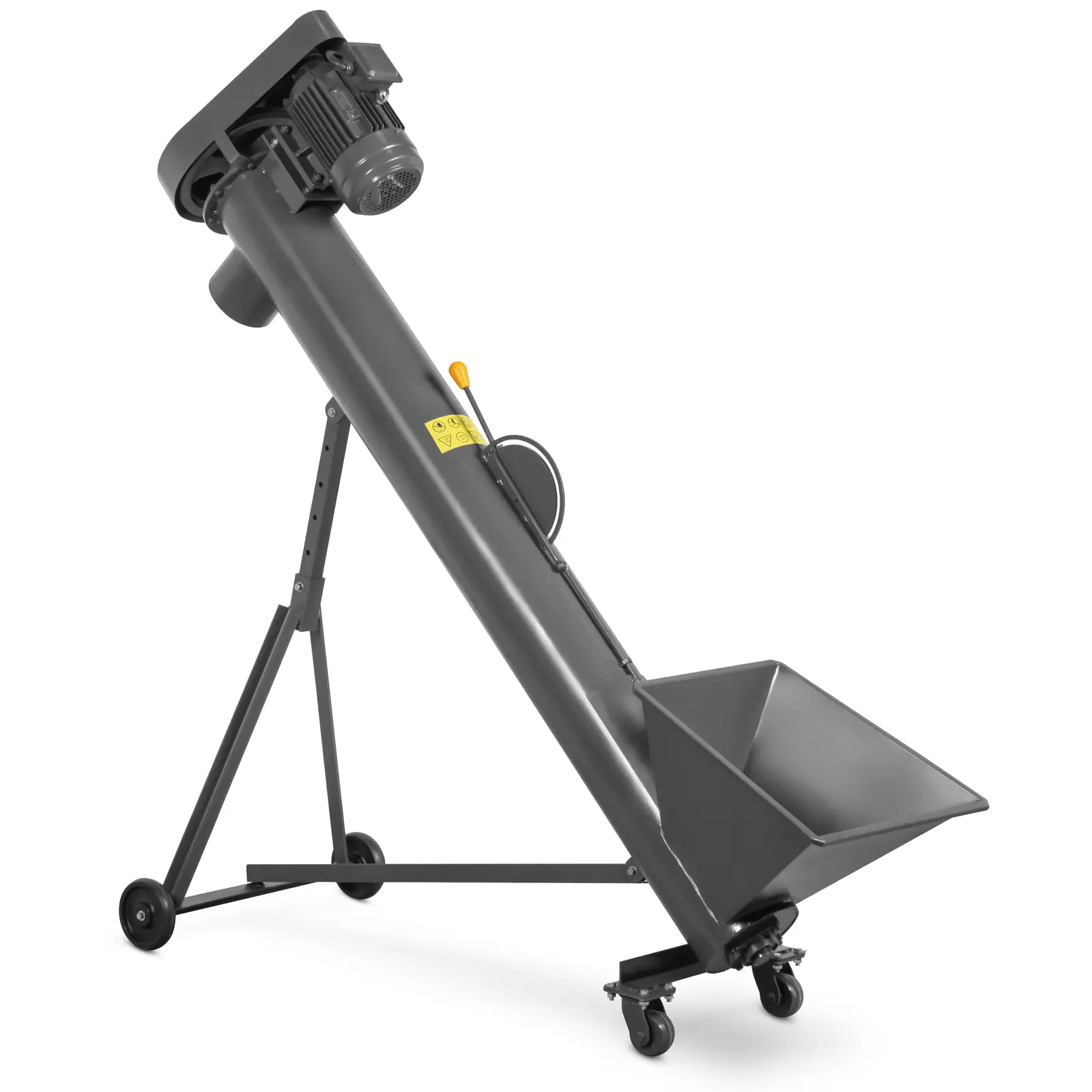

Screw Conveyor - 3 m - 1000 kg/h - 1400 rpm - 7 adjustable heights
![Screw Conveyor - 3 m - 1000 kg/h - 1400 rpm - 7 adjustable heights (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/10280610_photo_4?twic=v1/contain=104x104)
![Screw Conveyor - 3 m - 1000 kg/h - 1400 rpm - 7 adjustable heights (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/10280610_photo_4?twic=v1/contain=1024x500 "Screw Conveyor - 3 m - 1000 kg/h - 1400 rpm - 7 adjustable heights (Frequency [Hz]: 50)")
![Screw Conveyor - 3 m - 1000 kg/h - 1400 rpm - 7 adjustable heights (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/10280610_photo_4?twic=v1/contain=40x40){kind=small}
On Sale
€2,031.00€2,132.00
Lowest price in the 30 days before the discount: €2,131.00
Volume discount
Qty
Discount
Per item (gross)
3+
3%
€1,970.07
5+
6%
€1,909.14
10+
9%
€1,848.21
Sold out
Lowest price guaranteed
Key features
- High productivity – the auger conveyor achieves a feed rate of 80 - 1000 kg/h
- Flexible feed height – the auger conveyor for grain and pellets can be adjusted in 7 steps between 125 and 175 cm
- Adjustable flow rate – adjust the feed quantity to match the productivity of the pellet press at the large screw conveyor hopper
- Robust design – the screw conveyor tube, measuring 220 mm in diameter, features a durable 3 mm thick wall
- Effortless transport – thanks to the 4 wheels, you can position the pellet auger conveyor perfectly by the pellet press
Delivery details
Premium Guarantee
User Manual
Technical details
Power cord
3 m
Wheels
Yes
Frequency [Hz]
50
Pipe length
3 m
Power supply type
Mains
Emergency stop
Yes
Diameter spiral
190 mm
Overload protection
Yes
Number of wheels
4 Pc
Size
Feeding chute: 54 x 54 x 44 cm
Discharge chute: ⌀ 170mm
Material
Carbon steel
Wheel size [mm]
45 x 80
Production [kg/h]
80 - 1000
Rotational speed [rpm]
1400
Colour
Grey
Plug
5-pin
Power [W]
2200
Voltage [V]
400
Diameter pipe [mm]
220
Adjustable height
125 - 175 cm
Insulation class
F
IP protection class
IP55
IEC protection class
I
Thickness of tube material [mm]
3
Duty cycle of a device
S1 (continuous operation)
Dimensions (LxWxH)
300.8 x 80.5 x 234.5 cm
Weight
155 kg
Shipping dimensions (LxWxH)
331 x 65 x 84 cm
Shipping weight
217.5 kg
Delivery package
- Screw Conveyor WIE-SC-200
Product Description
Boost productivity with the screw conveyor from Wiesenfield
The Wiesenfield screw conveyor is perfect for transporting loose raw materials like grain, wood chips, or fertiliser. It's ideal for loading your tractor or filling a machine. The screw conveyor is also great for filling a pellet machine. With a feed speed of 80 - 1000 kg/h, you tailor the auger conveyor to the exact demands of the press. This way, you optimise your workflow, increase productivity, and produce perfect pellets with minimal time investment.
Screw conveyor for pellets, grain and other loose material
You can set the height of the pellet auger in seven stages between 125 and 175 cm. You use the four wheels to position the 3 m pipe and place the auger’s discharge directly over the filling hopper of the press. The wood shavings or other materials are conveniently loaded into the spacious hopper of the auger, where you can enlarge or reduce the inlet size based on the product volume. The raw material is fed evenly to the press through the 220 mm diameter feed pipe. The 3 mm thick pipe is remarkably durable and suitable for heavy-duty, continuous use.
