Welding set - TIG welder - 200 A - pulse - digital - welding helmet Colour Glass Y-100 - 2 welding angles - 30/45/60/75/90/105/135° - 25 kg
Item: EX18000624
|Model: S-WIGMA200M-SET-3
Price includes 23% VAT.
Qty
Discount
Per item
1+
0%
€469.00
3+
5%
€445.55
5+
10%
€422.10
10+
15%
€398.65
Key features
- powerful - TIG welding up to 200 A, with 100 % duty cycle up to 110 A, electric manual up to 160 A
- Modern - high-quality IGBT inverter and clear, digital control panel
- Optimised – precise adjustment options for pulse function and gas pre- and post-flow time
- Indestructible - the material blend of the TECAMID 66 welding helmet is not only flame-repellent, but also dimensionally stable, abrasion-resistant, low-wear and reacts insensitively to thermal and chemical influences.
- variable - holds workpieces precisely at angles of 30/45/60/75/90/105/135° with a holding force of 25 kg
Delivery details
Returns and warranty
Downloads
Technical details
View type
Full color
Ignition TIG
HF
Material
Stainless steel
Carbon steel
PA66
Colour
Black
Blue
Red
Silver
Angles [°]
30/45/60/75/90/105/135
Efficiency [%]
80
Pull-off force [kg]
25
Field of view [mm]
100 x 80
Angle adjustable [°]
120
Input power [kVA]
3.93
Power factor
0.73
MMA welding current [A]
30-160
Pulse current [A]
10-200
Gas after-flow [s]
0-10
Shade control
Button
Max. input power [kVA]
7.2
Insulation class
F
Norm Compliance
EN60974-1
Max. input current [A]
TIG: 26.8; MMA: 29
UV/IR protection
Always up to DIN 16
Bright mode range
DIN 5 - 9
Rated Input current [A]
TIG: 28; MMA: 32.9
Storage temperature [°C]
-20 - +70
Filter cartridge size [mm]
133 x 114 x 10
Switching time / Shifting time [s]
1/25000
Pulse frequency (DC-Mode) [Hz]
0.5-200
Delay time [s]
0.14 - 0.85
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)
Shade mode range / light protection
DIN 4 / 5 - 9 / 9 - 13
MMA
No
2T / 4T
Yes
TIG
No
Plasma
No
MIG/MAG
No
ARC-Force
Yes
Hot Start
Yes
Grind mode
Yes
Welding cart
No
Pulse function
Yes
Welding gloves
No
Welding helmets
No
Battery powered
Yes
Foot pedal connection
Yes
Combined welding devices
No
Duty cycle [%]
60
Arc sensors
4
Homogeneity
1
Optical class
1
Angle dependency
2
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

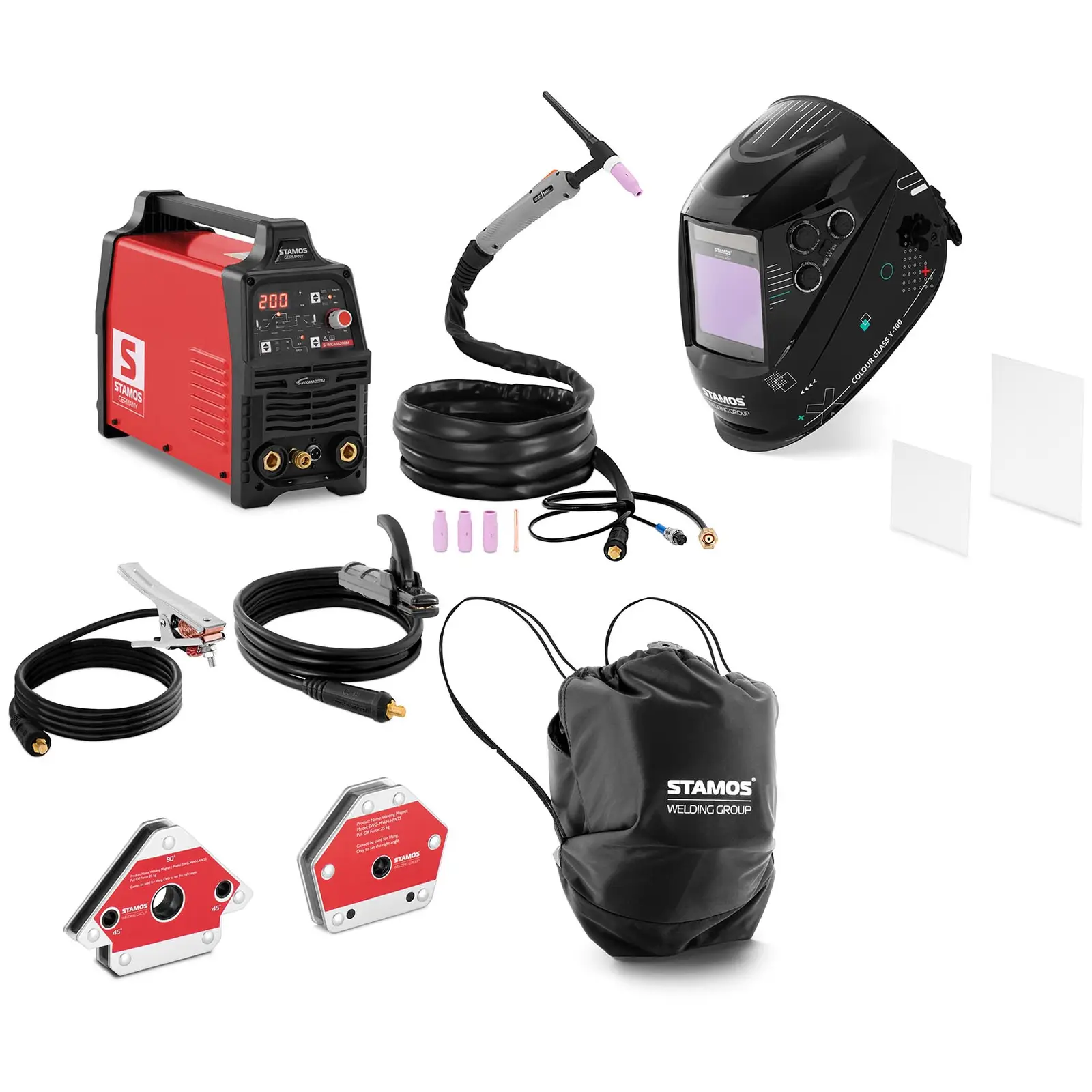

Delivery package
- TIG welding machine S-WIGMA200M
- TIG welding torch WP26 with hose package (5 m)
- Mass clamp with cable (3 m)
- Electrode holder with cable (3 m)
- Welding helmet COLOUR GLASS Y-100
- Protective bag
- Set of protective lenses (inner and outeren)
- Welding angle SWG-MWH-AW25
- Welding angle SWG-MWH-HW25
Product Description
Use the welding set for an optimal welding experience
You want precise welding results with maximum ease of use? Then pick up the TIG welder from Stamos Germany! Whether on the building site, in the workshop or in the hobby cellar, the TIG DC welder convinces with first-class performance values, simple handling and flexibly adjustable welding parameters. Or use the electric hand function to carry out welding work outdoors. For your safety, the set includes the indestructible and colourfast Colour Glass Y-100 welding helmet. In addition, you can precisely weld workpieces together at different angles with the two welding magnets.
