Product Number: EX18000701
|Model: S-MIGMA 250.IGBT-SET-1
Combination welder - 250 A - 230 V - welding helmet Colour Glass Y-100 - electrodes E7018 - basic - Ø 2,5 x 350 mm - 5 kg
![Combination welder - 250 A - 230 V - welding helmet Colour Glass Y-100 - electrodes E7018 - basic - Ø 2,5 x 350 mm - 5 kg (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/18000701_photo_6?twic=v1/contain=104x104)
![Combination welder - 250 A - 230 V - welding helmet Colour Glass Y-100 - electrodes E7018 - basic - Ø 2,5 x 350 mm - 5 kg (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/18000701_photo_6?twic=v1/contain=1024x500 "Combination welder - 250 A - 230 V - welding helmet Colour Glass Y-100 - electrodes E7018 - basic - Ø 2,5 x 350 mm - 5 kg (Frequency [Hz]: 50)")
![Combination welder - 250 A - 230 V - welding helmet Colour Glass Y-100 - electrodes E7018 - basic - Ø 2,5 x 350 mm - 5 kg (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/18000701_photo_6?twic=v1/contain=40x40){kind=small}
Key features
- Powerful - welding current up to max. 250 A infinitely variable
- Versatile - 4-in-1 combination welder with MIG/MAG, MMA, TIG and FCAW
- Indestructible – the TECAMID 66 material compound used is not only flame-repellent, but also dimensionally stable, abrasion-resistant, low-wear and resistant to thermal and chemical influences.
- See-through – large, true colour 100 x 80 mm view
- for steel - basic electrodes (E7018) with dimensions Ø 2.5 x 350 mm in 5 kg packaging
Delivery details
Premium Guarantee
User Manual
Technical details
AC
Yes
DC+
Yes
View type
Full color
ARC-Force
No
Frequency [Hz]
50
Anti Stick
No
Hot Start
Yes
Arc sensors
4
Grind mode
Yes
Homogeneity
1
Water cooling
No
Optical class
1
Flux Cored Wire
Yes
Angle dependency
2
Battery powered
Yes
Gas magnetic valve
Yes
Material
Iron
PA66
Alloy type
Basic electrode
Wire speed [m/min]
2.5-13
Lagging type
Basic electrode
Colour
Black
Blue
Silver
Electrode size [mm]
2.5 x 350
Classification
ISO 2560-А-E 42 4 В 4 2 Н5 | AWS A5.1: E7018
Efficiency [%]
≥ 0.85
Field of view [mm]
100 x 80
Duty cycle for 40°C [%]
60
Functions
MIG/MMA/TIG
Angle adjustable [°]
120
Chemical composition [%]
C 0.08 | Si 0.40 | Mn 1.10
Power factor
0.7
MMA welding current [A]
10 - 250
Shade control
Button
TIG welding current [A]
10 - 250
Insulation class
F
Max. input current [A]
38 - Mig; 43 - Mma; 29 - Tig
UV/IR protection
Always up to DIN 16
Bright mode range
DIN 5 - 9
Rated Input current [A]
29.5 - Mig; 33 - Mma; 22.5 - Tig
Storage temperature [°C]
-20 - +70
IEC protection class
Ip21
Filter cartridge size [mm]
133 x 114 x 10
Switching time / Shifting time [s]
1/25000
Delay time [s]
0.14 - 0.85
Details of electricity supply
Solar cells and replaceable lithium battery (1 × CR2450)
Shade mode range / light protection
DIN 4 / 5 - 9 / 9 - 13
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

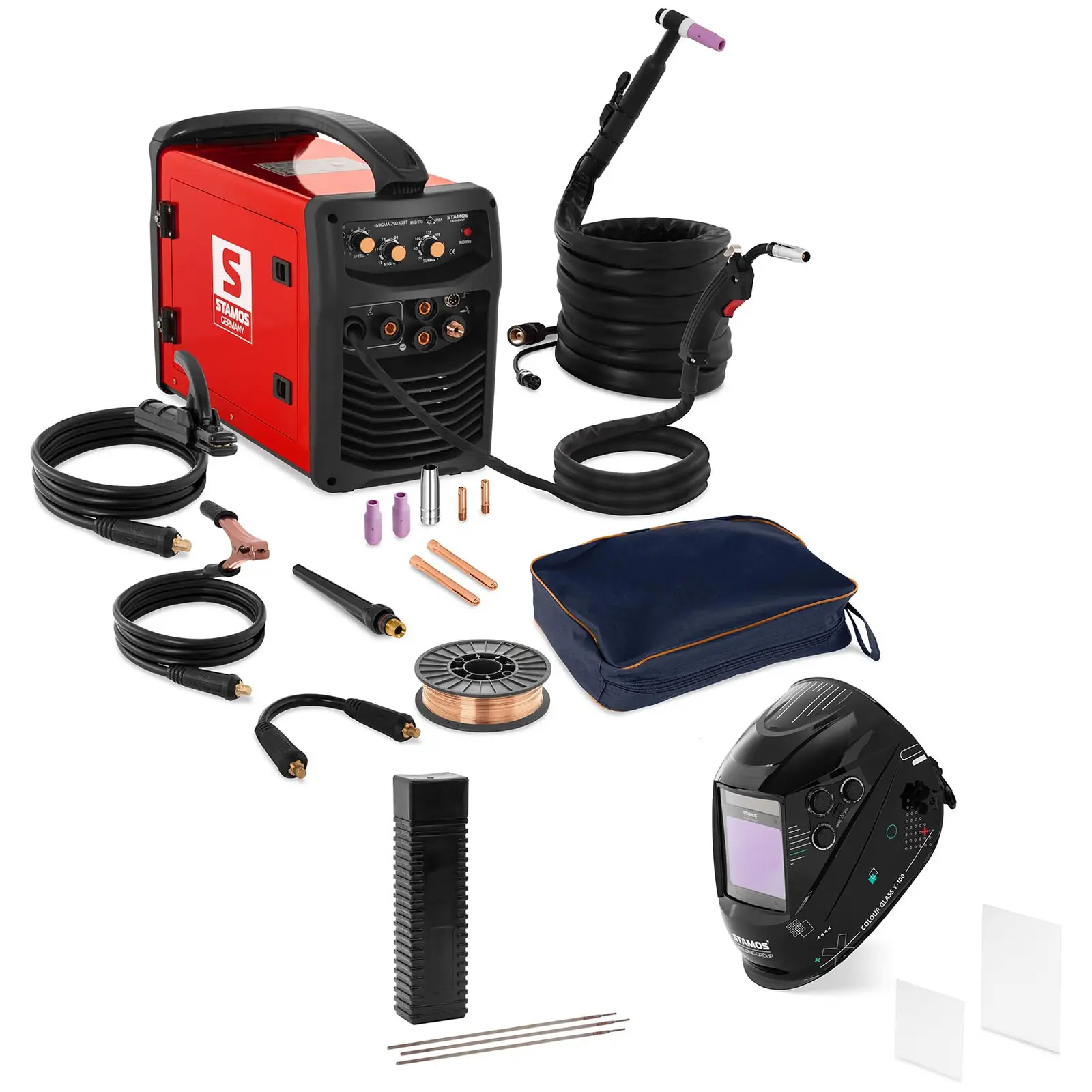

Delivery package
- Combination welder S-MIGMA 250.IGBT
- MIG hose package (1.75m)
- TIG hose package (3.7 m)
- Electrode cable (3 m)
- .Earth cable with clamp (3 m)
- Welding wire (0.8 mm) - 5 kg wire spool
- Polarisation cable
- 3 clamping sleeves (2.0 / 2.4 / 3.4 mm)
- Charging sleeve housing
- 3 ceramic nozzles
- MIG electrode
- Contact tip holder
- Welding helmet COLOUR GLASS Y-100
- Protective bag
- Set of protective lenses (inside and outside)
- Stick electrode S-WME-E7018 2.5X350/5.0KG, 5 kg
Product Description
Use the welding set for an optimal welding experience
Choose the S-MIGMA 250.IGBT combination welder from Stamos Germany for a professional, innovative and high-quality tool. Use the MIG/MAG, MMA, TIG and FCAW welding processes for various repair and maintenance work, with which you can join metals together efficiently and safely. For your safety, the Colour Glass Y-100 welding helmet is made of the indestructible TECAMID 66 material blend. Thanks to the true colour view, you can see all the details even more precisely. Whether you need them for shipbuilding, pressure vessels or bridges, with the stick electrodes you can reliably weld high-strength steel structures that are exposed to static and dynamic loads. The basic electrodes measure 2.5 x 350 mm and come in the packaging size of 5 kg.
