Welding Set Combined Welder - TIG 180 A - Cut 50 A - MMA - PRO + Welding helmet – Carbonic - PROFESSIONAL SERIES
701.00 Prices incl. VAT plus shipping costs*

Welding Set Combined Welder - TIG 180 A - Cut 50 A - MMA - PRO + Welding helmet – Carbonic - PROFESSIONAL SERIES

Manufacturer: Stamos Pro Series | item number: EX18000140 | Model:

Welding Set Combined Welder - TIG 180 A - Cut 50 A - MMA - PRO + Welding helmet – Carbonic - PROFESSIONAL SERIES
Welding Set Combined Welder - TIG 180 A - Cut 50 A - MMA - PRO + Welding helmet – Carbonic - PROFESSIONAL SERIES

Play Video
Tap to open gallery
701.00

Prices incl. VAT plus shipping costs*

  • Free shipment to Ireland

    ?

    Ready to ship today,
    Delivery time appr. 4-6 workdays

  • 30 days return service

    ?
  • 3 years guarantee

Product Highlights

  • TIG / Plasma / MMA
  • PRO Series - cable: 8 m
  • 180 A / 230 V
  • welding thickness: 8 mm
  • power ventilators

Highlights

  • plasma cutter CUT-50
  • MMA inverter 160 A
  • TIG DC inverter 180 A
  • precise, stable plasma arc for targeted and concentrated heat input
  • high cutting speed, deep cut, minimal material consumption
  • constant results thanks to separate inverter for assisting arc current
  • ideal safety conditions for the plasma torch through supervision of compressed air flow
  • ARC-Force function
  • Anti-Stick function
  • automatic adjustment of ignition power (with use of HF as well as Liftarc ignition)
  • use the advantages of the TIG welding procedure:
    • almost no weld spatter
    • only low health risks through welding fumes
    • only little warping of workpiece through spatially limited heat input
    • non-melting electrode
  • almost no weld spatter
  • only low health risks through welding fumes
  • only little warping of workpiece through spatially limited heat input
  • non-melting electrode
  • Adjustable helmet
  • Visor-face distance adjustable
  • Light protection DIN 4 – 8 or DIN 9 - 13
  • 100 x 65 mm field of view
  • Viewing angle adjustable
  • Light protection for all common welding processes
  • Delay time (0.25 - 0.8 s)
  • Switching time 1 / 30,000 s
You will save up to 3% when purchasing this set, compared to a single item order

Welder

The 3-in-1 welding machine S-MULTI 51P by Stamos Germany is a device that can perform a multitude of welding and cutting operations. It can be used as a plasma cutter CUT-50, an MMA welder with a welding current of up to 160 A and a TIG DC welder with a welding current of up to 180 A. By buying the S-MULTI 51P, you eliminate the need for purchasing multiple expensive specialised welding machines. The S-MULTI 51P is also set apart through its robustness and the use of the most recent technology, which makes it highly reliable. It has an input voltage of 230 V and, thanks to the use of lightweight but stable materials, a weight of only 12 kg with dimensions of 54 x 20 x 38 cm, which makes transporting the machine easy. The S-MULTI 51P can be used as:

Plasma cutter CUT-50:

MMA inverter 160 A:

TIG DC inverter 180 A:

+

Welding helmet

The Carbonic welding helmet by the Professional Series from Stamos Germany - the best choice for professional and hobby welders

The automatic Carbonic welding helmet from the Professional Series from Stamos Germany is characterized by its light weight and good response speed. The welding helmet is extremely versatile and can be used within all common welding processes (MIG welding, MAG / CO2 welding, manual welding, TIG welding, plasma cutting and micro plasma cutting).

In addition, the automatic welding helmet Carbonic is known for its long-lasting visibility (cartridges). The cartridges are powered by solar cells and a CR2450 battery. The welding helmet works with a particularly wide range of light protection, which can be flexibly adjusted from DIN 4 - 8 or from DIN 9 - 13. The size of the screen is an extraordinary 100 x 65 mm. In this way, you can always keep an overview of all the essential details.

The welding helmet is made of robust plastic. This ensures that the welding mask weighs only about 500 grams and that you do not have to worry about any restrictions or pain during work. A particularly prominent characteristic of theCarbonic is the simple adaptation to every head shape. Also adjustable is the distance between the face and the visor. This guarantees that the helmet sits extremely securely and can be used first-class.

In addition, Professional Series welding helmets have an outstanding response time of 1 / 30,000 seconds from light to dark. This means that you are always protected from dangerous arcs. The outstanding reaction time also allows for a seamless transition without the eyes being too stressed or requiring a prolonged adaptation time.

The automatic welding helmet Carbonic can be used with all common welding procedures and also has a practical grind mode. Thus, the helmet can be used for pure roughing, cutting and grinding work without an annoying up-and-down. Carbonic stands out as early as 3 amps. Whether you are an artisan, or want to use the welding helmet for private use or to be used in the workshop, the Carbonic combines all the necessary protection mechanisms and impresses with its quality and longevity.


Model
S-MULTI 51P
Item number
2016
Condition
New
Input voltage
230 V, 1-Phase
Frequency
50 / 60 Hz
Input current
20 A
Max. input current
26 A
Input power
4,3 kVA
Max. input power
5,6 kVA
Function
TIG
MMA
CUT
Open circuit voltage
56 V
56 V
230 V
Welding / Cut current
10 - 180 A
10 - 160 A
0 - 50 A
Duty cycle
60%
60%
60%
Welding / Cut current at 100% duty cycle
124 A
124 A
35 A
Welding / Cut current at 60% duty cycle
180 A
160 A
50 A
Ignition
HF - high frequency
Contact
Contact
Gas magnetic valve
Yes
Electrode diameter (TIG)
1 - 3,2 mm
Electrode diameter (MMA)
1 - 4 mm
Welding power
8 mm
Cutting power
16 mm
Length of hose package (TIG)
8 m
Length of cable (MMA)
8 m
Length of hose package (CUT)
8 m
Length of ground cable
8 m
Length of power cable
1,2 m
Cooling
Ventilator
Burner cooling
Air
Power factor
0.93
Efficiency (at rated power)
≥ 85
Insulation class
F
Protection class
IP20S
Dimensions (LxWxH)
54 x 20 x 38 cm
Weight
12 kg
Shipping dimensions (LxWxH)
81 x 29 x 41 cm
Shipping weight
26,7 kg
Model
Carbonic
Article number
2987
Condition
New
Material
Plastic
Head fitting
Adjustable
Face-sight-clearance
Adjustable
Field of view
100  x 65 mm
Arc sensors
4
Power supply
Solar and 1 x battery CR2450
Light protection
DIN 4 – 8 / DIN 9 - 13
Light level
DIN 3
Switching time
1/30.000 s
Delay (when lightened)
0,25 - 0,8 s
Minimum welding current
3 A
Optical class
1
Scattered light
2
Homogeneity
1
Viewing angle dependency
1
Grind-Mode
Yes
Operating temperature
-10 to +55 °C
Storage temperature
-20 to +70 °C
Dimensions (LxWxH)
54 x 20 x 38 cm
Weight
12 kg
Shipping dimensions (LxWxH)
81 x 29 x 41 cm
Shipping weight
26,7 kg

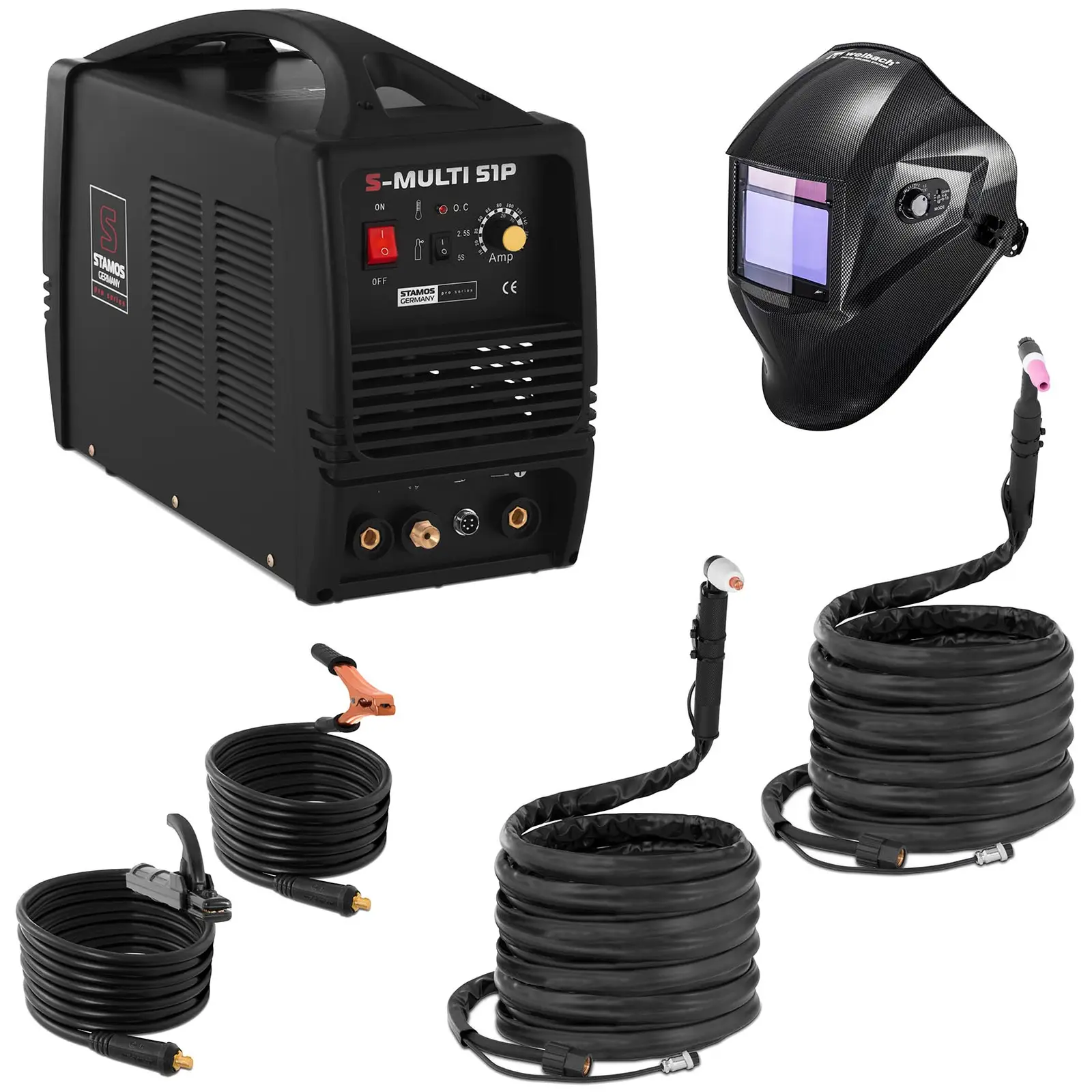

Delivery Package
  • S-MULTI 51P
  • electrode holder, cable length: 8 m
  • plasma torch with hose package, length: 8 m
  • TIG torch with hose package, length: 8 m
  • ground cable with clamp, length: 8 m
  • air hose, length: 3.6 m
  • pressure valve and manometer
  • wear parts for TIG torch (see picture)
  • wear parts for plasma cutter (see picture)
  • Welding helmet "Carbonic"
  • Instruction manual

MOSFET

The welder is equipped with a MOSFET transistor. This technology represents the highest standards of performance combined with compact and lightweight design. The result is 93% efficiency! The welding current is very stable and thus ensures a perfect weld.

Show moreShow less

VENTILATORS

Powerful fans ensure an optimal removal of heat from the unit.


PROTECTIVE GAS

TIG/MIG and MAG welding require a protective gas. Inert gases, such as argon and helium, as well as active gases (for example carbon dioxide) and other mixtures can be used. The solenoid valve regulates the flow of gas. The valve is operated via a button on the torch.

Show moreShow less

GAS / AIR CONNECTION

For plasma cutting, a gas is required with which the molten metal is blown away from the work surface. Compressed air is a common solution for this. For this purpose, the plasma cutter has a compressor connection.

Show moreShow less

EARTHING SYSTEM

On the back of every welding machine is a screw with an earthing mark. Before use, earth the unit via a cross-section cable, which must be at least 6 mm².


GROUND TERMINAL CONNECTOR

MMA WELDING CABLE CONNECTOR

TIG TORCH CONNECTOR

CUTTING TORCH CONNECTION

SUPPLY VOLTAGE

This device works with a 1-phase connection (230 V +/- 10%).


NON-CONTACT HF-IGNITION

A non-contact high-frequency ignition in TIG mode ensures a cleaner weld starting point.


WELDING CURRENT

GAS POST-FLOW TIME

The time after the weld is finished in which gas continues to flow from the torch; this cools the burner and protects the weld from oxidation.


2-STROKE

Start the weld by placing pressure on the torch button. Stop the process by releasing the button.


HOT START

Through automatically boosting the tension at the ignition of the arc, this function facilitates the electrical arc ignition. After ignition, the unit automatically returns to the pre-set voltage.

Show moreShow less

ARC-FORCE

The current value increases automatically when the arc is shorter.


ANTI-STICK

This function helps to prevent overheating of the electrode by switching off the welding current when the electrode sticks to the material.


TIG WELDING

A welding method in which the arc is maintained through an electrical current supplied from a non-consumable electrode. The arc is protected from the access of air by an inert gas.

Show moreShow less

MMA WELDING

Electrode welding with a coated electrode.


PLASMA CUTTING

The plasma arc melts the metal and the kinetic energy of the compressed air blows the metal aside.


POWER SWITCH

OVERLOAD / FAULT LED

The LED light indicates overheating or a malfunction.


PRESSURE GAUGE (MANOMETER)

Shows the value of compressed air the compressor delivers to the plasma cutter. The plasma cutter has a pressure reducing valve which regulates the air pressure.
