Welding Set TIG Welder - 200 A - 230 v - Pulse + Welding helmet – Firestarter 500 - ADVANCED SERIES
Manufacturer: Stamos Germany | item number: EX18000122 | Model:
Prices incl. VAT
-
Free shipment to Ireland
?Ready to ship today,
Delivery time appr. 4-7 workdays -
30 days return service
? -
3 years guarantee
Ready for immediate shipping When ordering and making payment within the next 2 hours 23 mins , shipping will happen today.
- for TIG DC and MMA welding processes
- MOSFET technology
- pulse function
- many special functions such as ARC-Force, Hot Start and Anti-Stick
- down slope: current drop adjustable from 0 to 5 seconds
- pulse frequency: pulse frequency adjustable from 0,5 to 25 Hz
- with powerful ventilators
- Adjustable helmet
- Visor-face distance adjustable
- Light protection DIN 9 - 13
Welder
The TIG welding device S-WIGMA 200P by Stamos Germany is a robustly built, highly reliable welding machine. It has an input voltage of 230 V and measures 16 x 36,50 x 24 cm while weighing just 13,15 kg due to the use of lightweight, sturdy materials. This makes the S-WIGMA 200P one of the lightest TIG welding machines with pulse function. The machine offers welding current settings between 5 and 200 A, providing great flexibility for all kinds of conditions. Automatic adjustment of the ignition energy (for both high-frequency and Liftarc ignition) ensures optimum ignition characteristics.
+
Welding helmet
The Fire Starter 500 welding helmet by the Advanced Series from Stamos Germany - the best choice for professional and hobby welders
The automatic Firestarter 500 welding helmet from the Advanced Series from Stamos Germany is characterized by its light weight and good response speed. The welding helmet is extremely versatile and can be used within all common welding processes (MIG welding, MAG / CO2 welding, manual welding, TIG welding, plasma cutting and micro plasma cutting).
In addition, the automatic welding helmet Firestarter 500 is known for its long-lasting visibility (cartridges). The cartridges are powered by solar cells and 2 CR2450 batteries. The welding helmet works with an exemplary range of light protection from DIN 9 - 13. The size of the screen is an extraordinary 98 x 55 mm. In this way, you can always keep an overview of all the essential details.
The welding helmet is made of robust plastic. This ensures that the welding mask weighs only about 500 grams and that you do not have to worry about any restrictions or pain during work. A particularly prominent characteristic of the Firestarter 500 is the simple adaptation to every head shape. Also adjustable is the distance between the face and the visor. This guarantees that the helmet sits extremely securely and can be used first-class.
In addition, Advanced Series welding helmets have an outstanding response time of 1 / 30,000 seconds from light to dark. This means that you are always protected from dangerous arcs. The outstanding reaction time also allows for a seamless transition without the eyes being too stressed or requiring a prolonged adaptation time.
The automatic Firestarter 500 welding helmet can be used with not only all common welding processes and also has a practical grind mode. Thus, the helmet can be used for pure roughing, cutting and grinding work without an annoying up-and-down use. Whether you are a craftsman, want to use the welding helmet for private use, or to be used in the workshop, the Firestarter 500 combines all the necessary protective mechanisms and ensures quality and longevity.

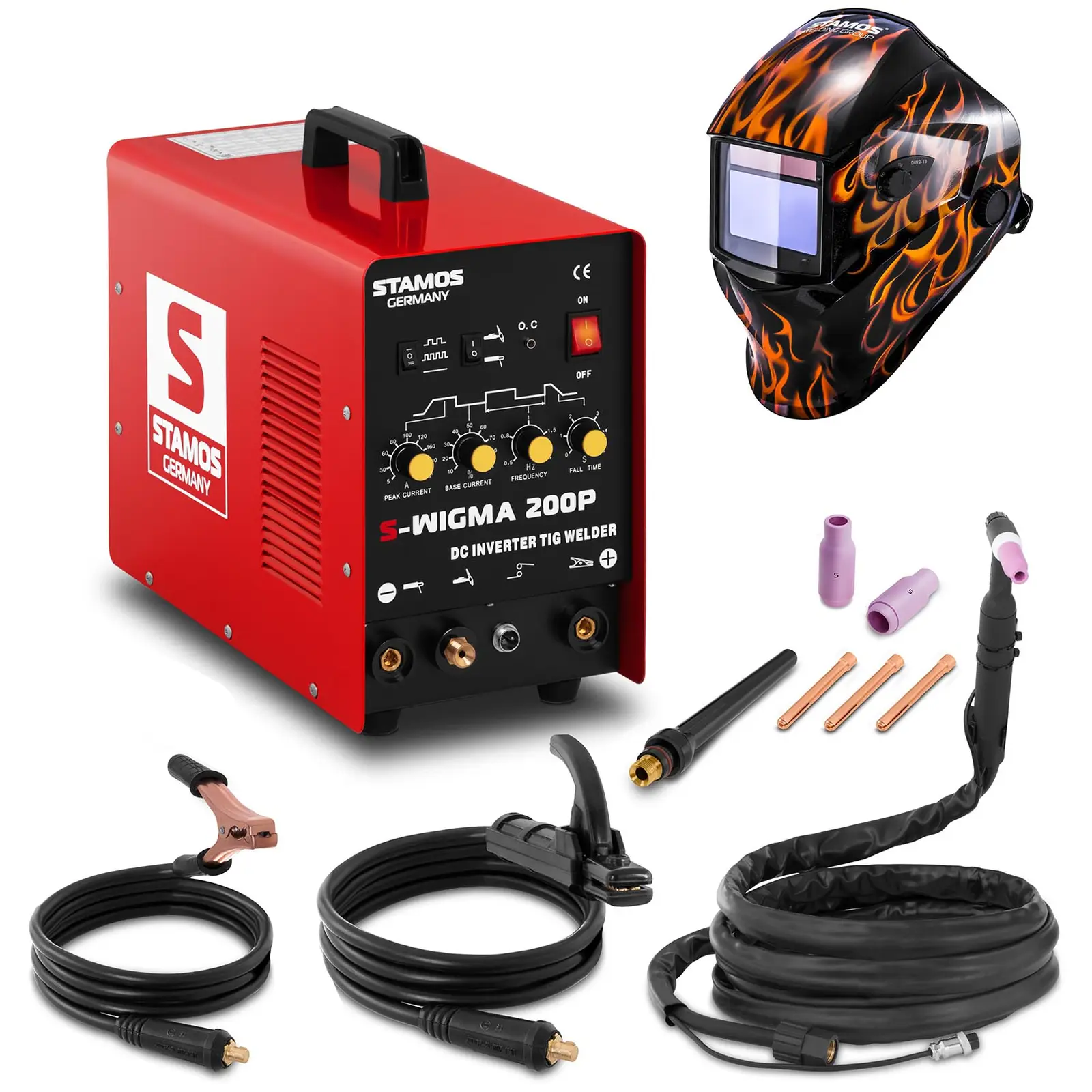

- S-WIGMA 200P
- earth terminal, cable length: 3.5 m
- TIG torch, hose length: 4 m
- electrode holder, cable length: 3.5 m
- adapter sleeve 2.0 mm
- adapter sleeve 2.4 mm
- adapter sleeve 3.2 mm
- collet body
- 3 ceramic nozzles (5, 6, 7)
- back cap (short)
- back cap (long)
- Welding helmet "Firestarter 500"
- Instruction manual
The welder is equipped with a MOSFET transistor. This technology represents the highest standards of performance combined with compact and lightweight design. The result is 93% efficiency! The welding current is very stable and thus ensures a perfect weld.
Show moreShow lessPowerful fans ensure an optimal removal of heat from the unit.
TIG/MIG and MAG welding require a protective gas. Inert gases, such as argon and helium, as well as active gases (for example carbon dioxide) and other mixtures can be used. The solenoid valve regulates the flow of gas. The valve is operated via a button on the torch.
Show moreShow lessOn the back of every welding machine is a screw with an earthing mark. Before use, earth the unit via a cross-section cable, which must be at least 6 mm².
This device works with a 1-phase connection (230 V +/- 10%).
A non-contact high-frequency ignition in TIG mode ensures a cleaner weld starting point.
The time taken of the output welding current to lower to that of the terminal current.
The time after the weld is finished in which gas continues to flow from the torch; this cools the burner and protects the weld from oxidation.
This function reduces the heat to the material. It is primarily suitable for welding thin plates. If MIG welding is used, it is perfect for aluminium welding.
The frequency of impulses during pulse mode.
The maximum value of the electric current while in pulse mode.
The current which maintains the arc while in pulse mode.
Start the weld by placing pressure on the torch button. Stop the process by releasing the button.
Through automatically boosting the tension at the ignition of the arc, this function facilitates the electrical arc ignition. After ignition, the unit automatically returns to the pre-set voltage.
Show moreShow lessThe current value increases automatically when the arc is shorter.
This function helps to prevent overheating of the electrode by switching off the welding current when the electrode sticks to the material.
A welding method in which the arc is maintained through an electrical current supplied from a non-consumable electrode. The arc is protected from the access of air by an inert gas.
Show moreShow lessElectrode welding with a coated electrode.
Used to switch the pulse function on and off.
By using the SHIFT key the welding mode can be selected.
The LED light indicates overheating or a malfunction.
