Welding Set Plasma Cutter - 50 A - 230 V - Basic + Welding helmet – Eagle Eye - ADVANCED SERIES

419.⁰⁰€ Prices incl. VAT 519.00€

(0)

Preview: Welding Set Plasma Cutter - 50 A - 230 V - Basic + Welding helmet – Eagle Eye - ADVANCED SERIES

Welding Set Plasma Cutter - 50 A - 230 V - Basic + Welding helmet – Eagle Eye - ADVANCED SERIES

Play Video

Instead of: 519.00€ You save 100.00€ 419.⁰⁰€ Instead of: 519.00€

Prices incl. VAT

Free shipment to Ireland
?

Ready to ship today,
Delivery time appr. 4-7 workdays
30 days return service
?
3 years guarantee

Ready for immediate shipping When ordering and making payment within the next 6 hours 18 mins , shipping will happen today.

Product highlights

Plasma
BASIC
230 V
cutting current: 20 - 50 A
cutting thickness: 0 - 14 mm

suitable for cutting
steel
non-ferrous metal
stainless steel
aluminium
all electroconductive metals
metals with a painted surface
cuts anything from thin sheets up to steel plates (max. 14 mm)
suitable for separation and quality cuts
steel

Welder

The plasma cutter S-Plasma 50 by Stamos Germany is a robust and highly reliable machine. It has an input voltage of 230 V. Measuring 16,5 x 37 x 28 cm, it is manufactured using lightweight, sturdy materials, weighing only 10,7 kg. The S-Plasma 50 offers cutting current settings between 20 and 50 A, providing great flexibility for all kinds of conditions. Order today to secure your competitively priced S-Plasma 50.

Applications:

Features ensuring optimum cutting quality:

Features for enhanced efficiency:

Welding helmet

The Eagle Eye welding helmet by the Advanced Series from Stamos Germany - the best choice for professional and hobby welders

The automatic Eagle Eye welding helmet from the Advanced Series from Stamos Germany is characterized by its light weight and good response speed. The welding helmet is extremely versatile and can be used within all common welding processes (MIG welding, MAG / CO2 welding, manual welding, TIG welding, plasma cutting and micro plasma cutting).

In addition, the automatic welding helmet Eagle Eye is known for its long-lasting visibility (cartridges). The cartridges are powered by solar cells and 2 CR2450 batteries. The welding helmet works with an exemplary range of light protection from DIN 9 - 13. The size of the screen is an extraordinary 98 x 55 mm. In this way, you can always keep an overview of all the essential details.

The welding helmet is made of robust plastic. This ensures that the welding mask weighs only about 500 grams and that you do not have to worry about any restrictions or pain during work. A particularly prominent characteristic of the Blaster is the simple adaptation to every head shape. Also adjustable is the distance between the face and the visor. This guarantees that the helmet sits extremely securely and can be used first-class.

Model

S-Plasma 50

Item number

2007

Condition

New

Input voltage

230 V, 1-Phase

Frequency

50 / 60 Hz

Input current

20 A

Max. input current

27 A

Nominal input power

4,3 kVA

Max. input power

5,8 kVA

Open-circuit voltage

230 V

Cut current

20 - 50 A

Duty cycle

60%

Cut current at 100% duty cycle

38 A

Cut current 60% duty cycle

50 A

Ignition

Contact

Cut power

14 mm

Cut width

1 mm

Compressor connection

100 l/min

Air pressure

4,5 bar

Length of hose package

4 m

Length of ground cable

3,6 m

Length of power cable

1,5 m

Cooling

Ventilator

Burner cooling

Air

Power factor

0.93

Efficiency

≥ 0.85

Insulation class

Protection class

IP20S

Dimensions (LxWxH)

16,5 x 37 x 28 cm

Weight

9,91 kg

Shipping dimensions (LxWxH)

51,3 x 28,2 x 39 cm

Shipping weight

12,46 kg

Model

Eagle Eye

Article number

2983

Condition

New

Material

Plastic

Head fitting

Adjustable

Face-sight-clearance

Adjustable

Field of view

98 x 55 mm

Arc sensors

Power supply

Solar and 2 x batteries CR2450

Light protection

DIN 9 - 13

Light level

DIN 4

Switching time

1/30,000 s

Delay (when lightened)

0,25 - 0,8 s

Minimum welding current

5 A

Optical class

Scattered light

Homogeneity

Viewing angle dependency

Grind-Mode

Yes

Operating temperature

-10 to +55 °C

Storage temperature

-20 to +70 °C

Dimensions (LxWxH)

16,5 x 37 x 28 cm

Weight

9,91 kg

Shipping dimensions (LxWxH)

51,3 x 28,2 x 39 cm

Shipping weight

12,46 kg

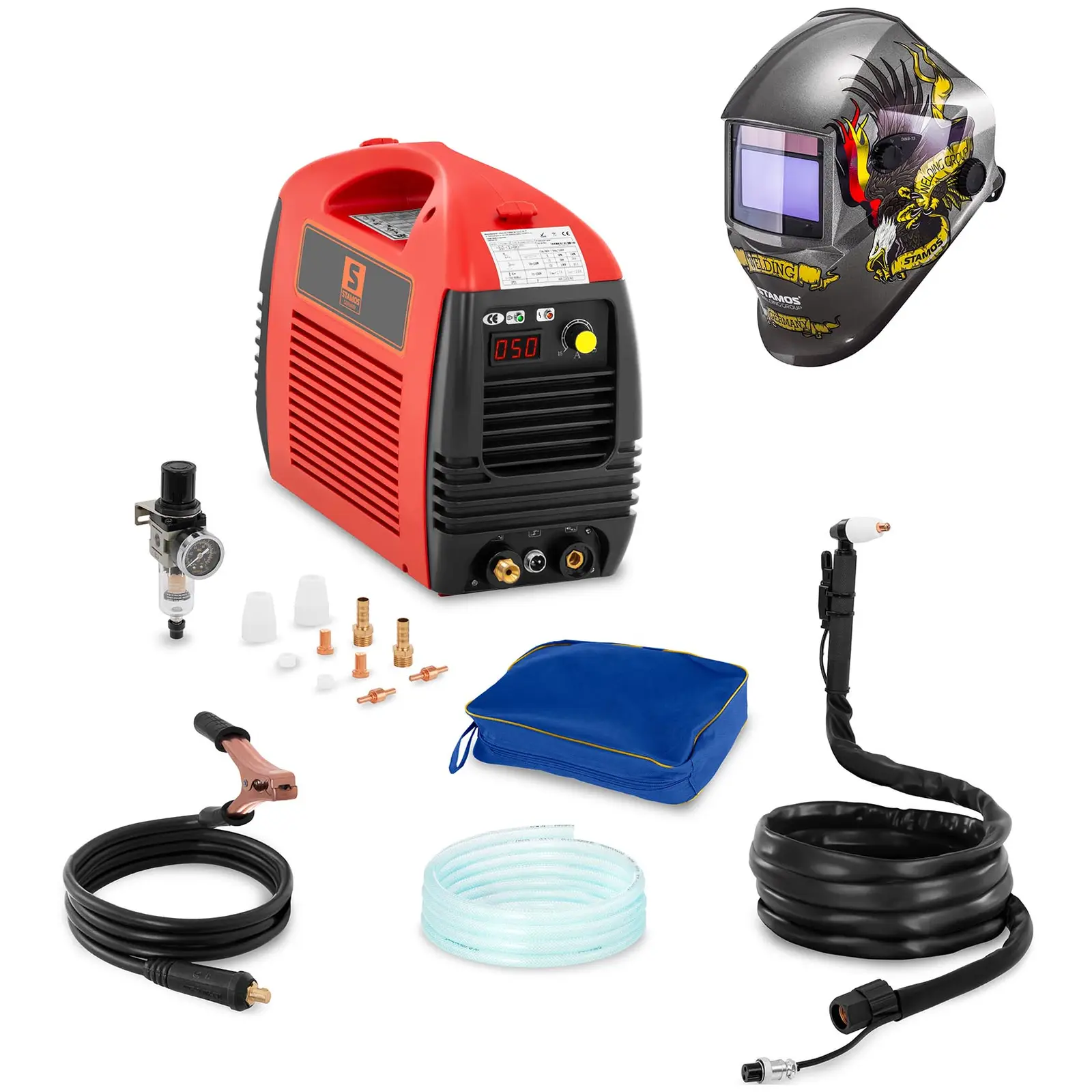

Delivery Package

S-Plasma 50
ground cable with clamp, length: 3.6 m
hose package, length: 4 m
air hose
pressure reducer and manometer
wear parts (see picture)

Welding helmet "Eagle Eye"
Instruction manual

MOSFET

The welder is equipped with a MOSFET transistor. This technology represents the highest standards of performance combined with compact and lightweight design. The result is 93% efficiency! The welding current is very stable and thus ensures a perfect weld.

Show moreShow less

VENTILATORS

Powerful fans ensure an optimal removal of heat from the unit.

GAS/AIR CONNECTION

For plasma cutting, a gas is required with which the molten metal is blown away from the work surface. Compressed air is a common solution for this. For this purpose, the plasma cutter has a compressor connection.

Show moreShow less

EARTHING SYSTEM

On the back of every welding machine is a screw with an earthing mark. Before use, earth the unit via a cross-section cable, which must be at least 6 mm².

GROUND TERMINAL CONNECTOR

CUTTING TORCH CONNECTION

SUPPLY VOLTAGE

This device works with a 1-phase connection (230 V +/- 10%).

WELDING CURRENT

2-STROKE

Start the weld by placing pressure on the torch button. Stop the process by releasing the button.

POWER SWITCH

DISPLAY

Shows the welding / cutting parameters.

OVERLOAD / FAULT LED

The LED light indicates overheating or a malfunction.

PRESSURE GAUGE (MANOMETER)

Shows the value of compressed air the compressor delivers to the plasma cutter. The plasma cutter has a pressure reducing valve which regulates the air pressure.
