Welding Set Combined Welder - TIG 220 A - MIG 220 A - E-Hand + Welding helmet – Carbonic - PROFESSIONAL SERIES
Manufacturer: Stamos Germany | item number: EX18000226 | Model:
Prices incl. VAT
-
Free shipment to Ireland
?Ready to ship today,
Delivery time appr. 4-7 workdays -
30 days return service
? -
3 years guarantee
Ready for immediate shipping When ordering and making payment within the next 8 hours 3 mins , shipping will happen today.
- 5 in 1 combined welder for repair and maintenance work
- suitable for MIG/MAG, TIG DC, MMA Welding, Braze Welding and cored-wire light-arc welding
- 220 ampere welding current
- 230 volt connection
- power ventilators for cooling
- casing made from powder coated steel sheets
- compact and robust construction
- mobil use thanks to carrying handle
- mechanical wire electrode feeding
- 2 roller wire feed
Welder
The Combined Welding Device S-MTM 220 by Stamos Power combines five different welding techniques. With this welder you can work in MIG/MAG, DC TIG, Electrode (MMA) and cored-wire light-arc welding. Additionally the device is equipped with the possibility for braze welding. High-alloyed steels and workpieces like aluminium, magnesium, nickel based materials and titan can be welded with the MIG method. The device can be steplessly regulated and reaches maximum 220 ampere.
Steel, stainless steel, brass, titan can be easily processed with the TIG method. Again, you can attain great welding results.
The combined welder S-MTM 220 by Stamos Power can also do MMA welding thanks to integrated commutators.
The cored-wire light-arc welding offers the bridge between electrode and MIG welding and is ideally suited for working on stainless steel because it effectively prevents the seams from tarnishing.
The integrated braze welding function is ideally suited for working on thin metals and is therefore especially popular in the automobile industry. Through the combination of all the different functions you receive an all-inclusive package that can be individually adjusted to all your needs. The device was made extremely robust and compact by Stamos Power and the fixed handle makes it the perfect tool for crafts workshops or construction sites.
+
Welding helmet
The Carbonic welding helmet by the Professional Series from Stamos Germany - the best choice for professional and hobby welders
The automatic Carbonic welding helmet from the Professional Series from Stamos Germany is characterized by its light weight and good response speed. The welding helmet is extremely versatile and can be used within all common welding processes (MIG welding, MAG / CO2 welding, manual welding, TIG welding, plasma cutting and micro plasma cutting).
In addition, the automatic welding helmet Carbonic is known for its long-lasting visibility (cartridges). The cartridges are powered by solar cells and a CR2450 battery. The welding helmet works with a particularly wide range of light protection, which can be flexibly adjusted from DIN 4 - 8 or from DIN 9 - 13. The size of the screen is an extraordinary 100 x 65 mm. In this way, you can always keep an overview of all the essential details.

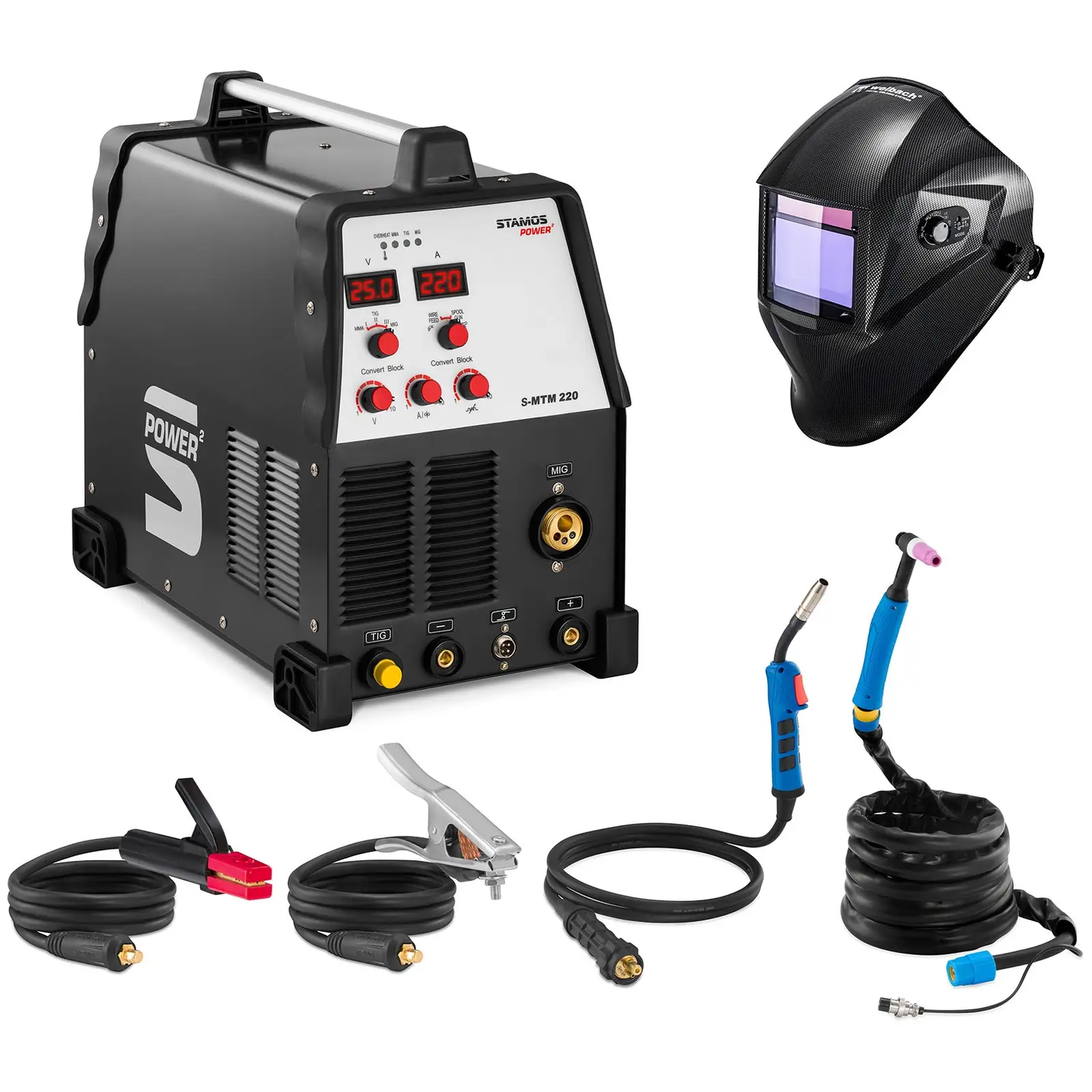

- S-MTM 220
- earth terminal
- electrode holder
- TIG Torch WP-26
- 3 clamping sleeves: 1 x 1,6 mm /1 x 2,4 mm /1 x 3,2 mm
- 3 ceramic nozzles: 1 x 5, 1 x 6, 1 x 7
- collet body
- tungsten electrode
- cable-hose assembly MIG: MB15AK
- 2 power nozzles: 1 x 0,8 mm, 1 x 0,9 mm
- gas pipe
- Welding helmet "Carbonic"
- Instruction manual
The welder is equipped with a MOSFET transistor. This technology represents the highest standards of performance combined with compact and lightweight design. The result is 93% efficiency! The welding current is very stable and thus ensures a perfect weld.
Show moreShow lessPowerful fans ensure an optimal removal of heat from the unit.
TIG/MIG and MAG welding require a protective gas. Inert gases, such as argon and helium, as well as active gases (for example carbon dioxide) and other mixtures can be used. The solenoid valve regulates the flow of gas. The valve is operated via a button on the torch.
Show moreShow lessOn the back of every welding machine is a screw with an earthing mark. Before use, earth the unit via a cross-section cable, which must be at least 6 mm².
This device works with a 1-phase connection (230 V +/- 10 %).
A non-contact high-frequency ignition in TIG mode ensures a cleaner weld starting point.
Start the weld by placing pressure on the torch button. Stop the process by releasing the button.
Through automatically boosting the tension at the ignition of the arc, this function facilitates the electrical arc ignition. After ignition, the unit automatically returns to the pre-set voltage.
Show moreShow lessThe current value increases automatically when the arc is shorter.
This function helps to prevent overheating of the electrode by switching off the welding current when the electrode sticks to the material.
A welding method in which the arc is maintained through an electrical current supplied from a non-consumable electrode. The arc is protected from the access of air by an inert gas.
Show moreShow lessElectrode welding with a coated electrode.
Welding with wire feed in a protective atmosphere.
By using the SHIFT key the welding mode can be selected.
Shows the welding / cutting parameters.
The LED light indicates overheating or a malfunction.
The following accessories can be used with the Combined Welding Device S-MTM 220 by Stamos Power:
