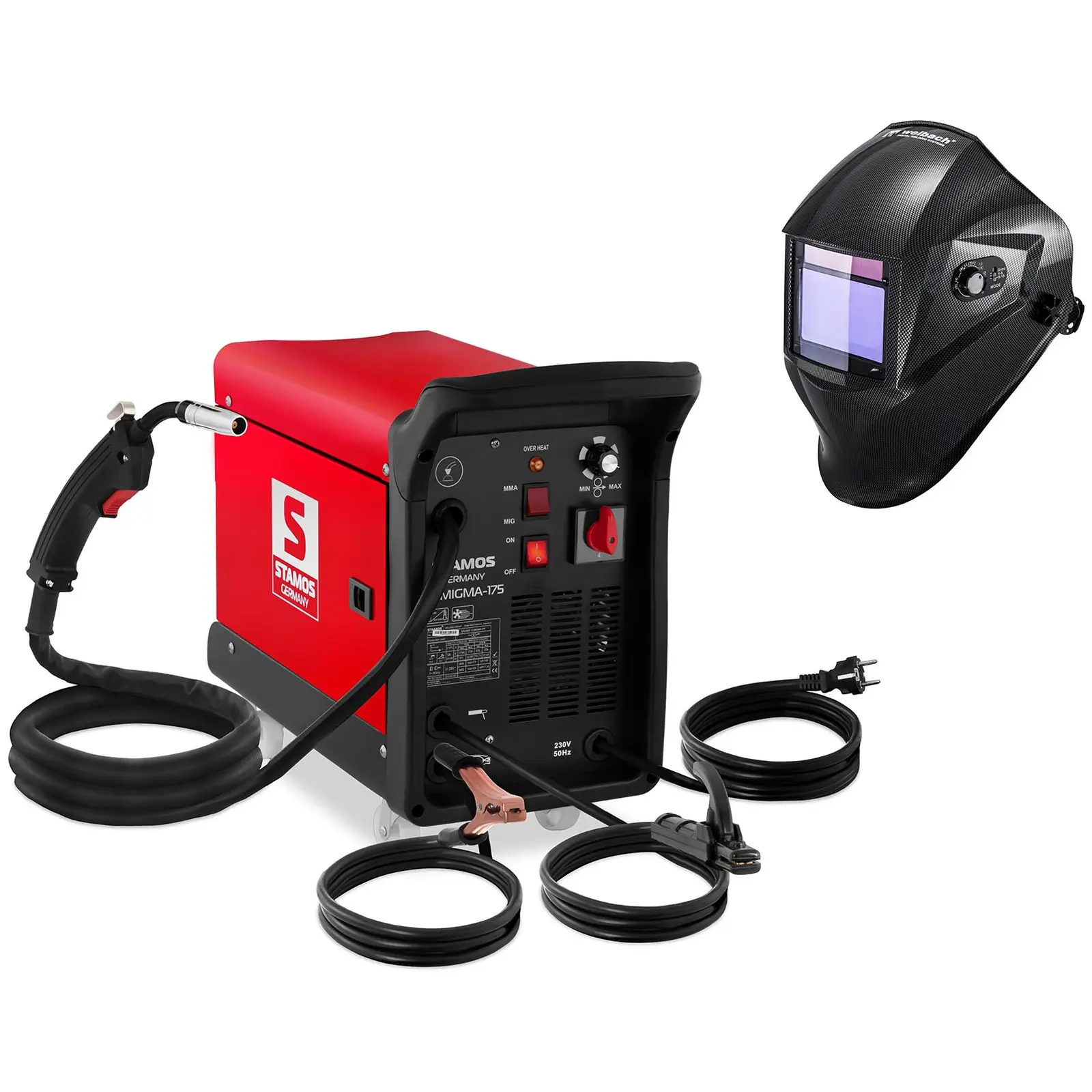

Welding Set Combined Welder - 175 A - 230 V - with cart + Welding helmet – Carbonic - PROFESSIONAL SERIES
383.00 Prices incl. VAT plus shipping costs*

Welding Set Combined Welder - 175 A - 230 V - with cart + Welding helmet – Carbonic - PROFESSIONAL SERIES

Manufacturer: Stamos Germany | item number: EX18000248 | Model:

Welding Set Combined Welder - 175 A - 230 V - with cart + Welding helmet – Carbonic - PROFESSIONAL SERIES
Welding Set Combined Welder - 175 A - 230 V - with cart + Welding helmet – Carbonic - PROFESSIONAL SERIES

Tap to open gallery
383.00

Prices incl. VAT plus shipping costs*

  • Free shipment to Ireland

    ?

    Ready to ship today,
    Delivery time appr. 6-8 workdays

  • 30 days return service

    ?
  • 3 years guarantee

Product highlights

  • MIG / MAG / MMA / FCAW
  • 230V / 50Hz
  • Welding current up to 175 A
  • Full wire / core wire (Flux)
  • Overload protection

  • 4 in 1 combination welding machine - MIG, MAG, MMA and FCAW
  • Suitable for repair and maintenance work for both indoors and outdoors
  • Robust housing unit
  • Welding current up to max. 175 amps (adjustable)
  • Simple, intuitive operation
  • Easy mobile use via carrying handles
  • Free: 1 kg of welding wire (0,8 mm)
  • Adjustable helmet
  • Visor-face distance adjustable
  • Light protection DIN 4 – 8 or DIN 9 - 13

Welder

With the S-MIGMA-175 combined welding machine from Stamos Germany, you will find a professional, innovative and high-quality device for a variety of repair and maintenance work. It combines the welding procedures of MIG, MAG, MMA and FCAW (flux core arc welding) and is thus very versatile. The compact design, the robust housing and the two carrying handles make the S-MIGMA-175 the ideal companion at the workshop or on the construction site.

Materials such as aluminium, copper, steel, stainless steel, cast iron, nickel and other alloys can be worked with the S-MIGMA-175. The welding current can be regulated in the range of 60 to 175 amperes and can thus be individually adapted to the required specifications. For welding, solid wire / core wire (flux) can be used in wire sizes between 0,6 mm and 0,8 mm.

The simple to use interface allows for intuitive operation and easy adjustment of the desired parameters. The welding machine has ventilators, which are used for optimal cooling. The resulting heat is thus transported away quickly and effectively. The thermal overload protection additionally ensures a high safe use.

+

Welding helmet

The Carbonic welding helmet by the Professional Series from Stamos Germany - the best choice for professional and hobby welders

The automatic Carbonic welding helmet from the Professional Series from Stamos Germany is characterized by its light weight and good response speed. The welding helmet is extremely versatile and can be used within all common welding processes (MIG welding, MAG / CO2 welding, manual welding, TIG welding, plasma cutting and micro plasma cutting).

In addition, the automatic welding helmet Carbonic is known for its long-lasting visibility (cartridges). The cartridges are powered by solar cells and a CR2450 battery. The welding helmet works with a particularly wide range of light protection, which can be flexibly adjusted from DIN 4 - 8 or from DIN 9 - 13. The size of the screen is an extraordinary 100 x 65 mm. In this way, you can always keep an overview of all the essential details.

The welding helmet is made of robust plastic. This ensures that the welding mask weighs only about 500 grams and that you do not have to worry about any restrictions or pain during work. A particularly prominent characteristic of theCarbonic is the simple adaptation to every head shape. Also adjustable is the distance between the face and the visor. This guarantees that the helmet sits extremely securely and can be used first-class.

In addition, Professional Series welding helmets have an outstanding response time of 1 / 30,000 seconds from light to dark. This means that you are always protected from dangerous arcs. The outstanding reaction time also allows for a seamless transition without the eyes being too stressed or requiring a prolonged adaptation time.


Model
S-MIGMA-175
Article number
2205
Condition
New
Rated input voltage
230 V
Input frequency
50 Hz
Material of the housing
Plastic, Steel
Input current
14 A (MMA), 11,5 A (MIG)
Open circuit voltage
22 – 38 V
Welding current (MMA / MIG)
60 – 175 A
Operating cycle (MMA / MIG)
15 %
Welding current in working cycle 100% (MMA / MIG)
67 A
Diameter of the welding wire
0,6 – 0,8 mm
Wire type
Full Wire / Core Wire (Flux)
Dimensions (LxWxH)
56 x 25 x 46 cm
Weight
30,1 kg
Shipping dimensions (LxWxH)
62 x 30 x 49 cm
Shipping weight
33,9 kg
Model
Carbonic
Article number
2987
Condition
New
Material
Plastic
Head fitting
Adjustable
Face-sight-clearance
Adjustable
Field of view
100  x 65 mm
Arc sensors
4
Power supply
Solar and 1 x battery CR2450
Light protection
DIN 4 – 8 / DIN 9 - 13
Light level
DIN 3
Switching time
1/30.000 s
Delay (when lightened)
0,25 - 0,8 s
Minimum welding current
3 A
Optical class
1
Scattered light
2
Homogeneity
1
Viewing angle dependency
1
Grind-Mode
Yes
Operating temperature
-10 to +55 °C
Storage temperature
-20 to +70 °C
Dimensions (LxWxH)
56 x 25 x 46 cm
Weight
30,1 kg
Shipping dimensions (LxWxH)
62 x 30 x 49 cm
Shipping weight
33,9 kg
Delivery Package
  • Welding machine S-MIGMA-175
  • Ground cable with terminal (1,25 m)
  • Welding cable with electrode holder (1,2 m)
  • MIG power cable (1,7 m)
  • Power cable (1,4 m)
  • Contact nozzles (2 pieces)
  • Gas nozzle (1 piece)
  • Welding wire (0,8 mm) - 1 kg wire coil
  • Operation manual
  • Welding helmet "Carbonic"
  • Instruction manual
