TIG Welder - Liftarc - 200 A - ED 60 %
329.00 Prices incl. VAT 379.00€

TIG Welder - Liftarc - 200 A - ED 60 %

Manufacturer: Stamos Germany | item number: EX18000289 | Model:

TIG Welder - Liftarc - 200 A - ED 60 %
TIG Welder - Liftarc - 200 A - ED 60 %
TIG Welder - Liftarc - 200 A - ED 60 %

Tap to open gallery
Instead of: 379.00€   You save 50.00€   329.00 Instead of: 379.00€

Prices incl. VAT

  • Free shipment to Ireland

    ?

    Ready to ship today,
    Delivery time appr. 4-7 workdays

  • 30 days return service

    ?
  • 3 years guarantee

Ready for immediate shipping When ordering and making payment within the next 1 hours 55 mins , shipping will happen today.

Product highlights

  • E-Hand / TIG Liftarc
  • Power: 200 A / 60 % DC
  • Digital control panel + LED display
  • Hot Start, Arc Force, Anti-Stick
  • Cable length, TIG torch: 4 m

With this set, you can transform the electrode welding machine S-MMA 200 LT from Stamos Germany into a fully-fledged TIG welding machine. The combination welder convinces with its high performance and high mobility. The TIG torch included in the set uses the innovative Liftarc ignition, which has several advantages over the widespread high-frequency ignition.

Show more Show less

The welder is operated with a digital menu with a large LED display, including the potentiometer for a seamless regulation of the welding current between 10 and 200 amps. The clearly arranged switches allow you to easily switch between MMA welding and TIG welding and select the VRD safety function.

Show more Show less

At the full power of 200 A, the device has a duty cycle of 60 percent. The power can be regulated down to 155 A which increases the duty cycle for a longer operation without pausing. You do not need any protective gas. The E-Hand welder can be used and will work at great precision, even in adverse circumstances, for example with strong winds.

Show more Show less

The E-Hand or MMA device welds materials like steel, iron, cast iron, nickel, copper or aluminium from 1,5 mm thickness. It can also be used in humid working environments such as excavations or sewers, since the VRD (Voltage Reduction Device) safety function reduces the open-circuit voltage, which automatically starts up at the beginning of welding and is safely switched off at the end.

Show more Show less

The Hot-Start-function of the electrode welder procures an automatic and short-term increase of the welding current. Due to this “Hot Start”, the starting point is immediately heated to the optimal temperature and the electrodes do not clog. You get clean and stable welding results from the first.

Show more Show less

The ARC FORCE and ANTI-STICK functions further optimise the welding result. ARC FORCE adjusts the arc to the material to be welded and the desired density of the weld.

Show more Show less

The ANTI-STICK function prevents overheating and the electrode sticking to the welding material by switching off the welding current. Due to these properties, the welder is an all-rounder for metalworking, repairs and renovations.

Show more Show less

With the TIG welding torch with 4 m cable assembly (included in the set), this welder can also be used for TIG welding with Liftarc ignition.

The Liftarc ignition has many advantages over high frequency ignition. Sensitive electronic devices in the vicinity, for example cell phones, computers, control systems, are not affected or disturbed. Neither tungsten inclusions nor ignition problems occur, in case that the cable assembly is longer. Damage to the electrode tip is avoided.

Show more Show less

TIG welding can be used when particularly clean welds are needed. There are hardly any impurities and the welds are always straight and sharp. There are no slags, so cleaning is not required. Sparks, splashes and open flames are kept to a minimum.

Show more Show less

  • High-powered 200 A (MIG) at 60% duty cycle
  • Set includes a TIG welding torch with Liftarc ignition
  • Modern, digital control panel with LED display
  • Hot Start, Anti Stick, Arc Force
  • Voltage reduction by VRD in humid environments

TIG Welder - Liftarc - 200 A - ED 60 %

Model
S-MMA 200 LT Set
Item number
18000289
Condition
New
Welder S-MMA 200 LT
Input voltage/Frequency
230 V / 50Hz
Max voltage current
200 A
Max input power
9,6 kVA
Rated input power
8,2 kVA
Open-circuit voltage
65 V (MMA) / 67 V (TIG)
Max input current
MMA: 41,8 A; TIG: 32,3 A
Rated input current
MMA: 41,8 A; TIG: 41,8 A
Welding current
15 – 200 A
Duty cycle/Operation duration at 200 A
60 %
Welding current at a duty cycle of 100%
155 A
Power factor
0.73
Efficiency
80 %
Diameter, electrodes
1,6 - 5 mm (MMA); 1 - 2,4 mm (TIG)
Material thickness for welding (MMA)
1,5 - 8 mm
Material thickness for welding (TIG)
1 - 6 mm
Hot Start
Yes
Anti-Stick
Yes
Arc-Force
Yes
Diameter, TIG cable connection
9 mm
Device cooling
Ventilator
Insulation class
F
Protection class
IP21
Length, power cable
1,9 m
Welding torch LTT-01-4M
Length, welding torch, cable assembly
4 m
Length, gas supply line
6 m
Material, cable
PVC
Diameter, connection, torch
9 mm
Diameter, connection, gas supply line
5 mm
Dimensions (LxWxH)
41 x 16,8 x 31,5 cm
Weight
9,2 kg
Shipping dimensions (LxWxH)
57,2 x 24,8 x 37,2 cm
Shipping weight
12,05 kg

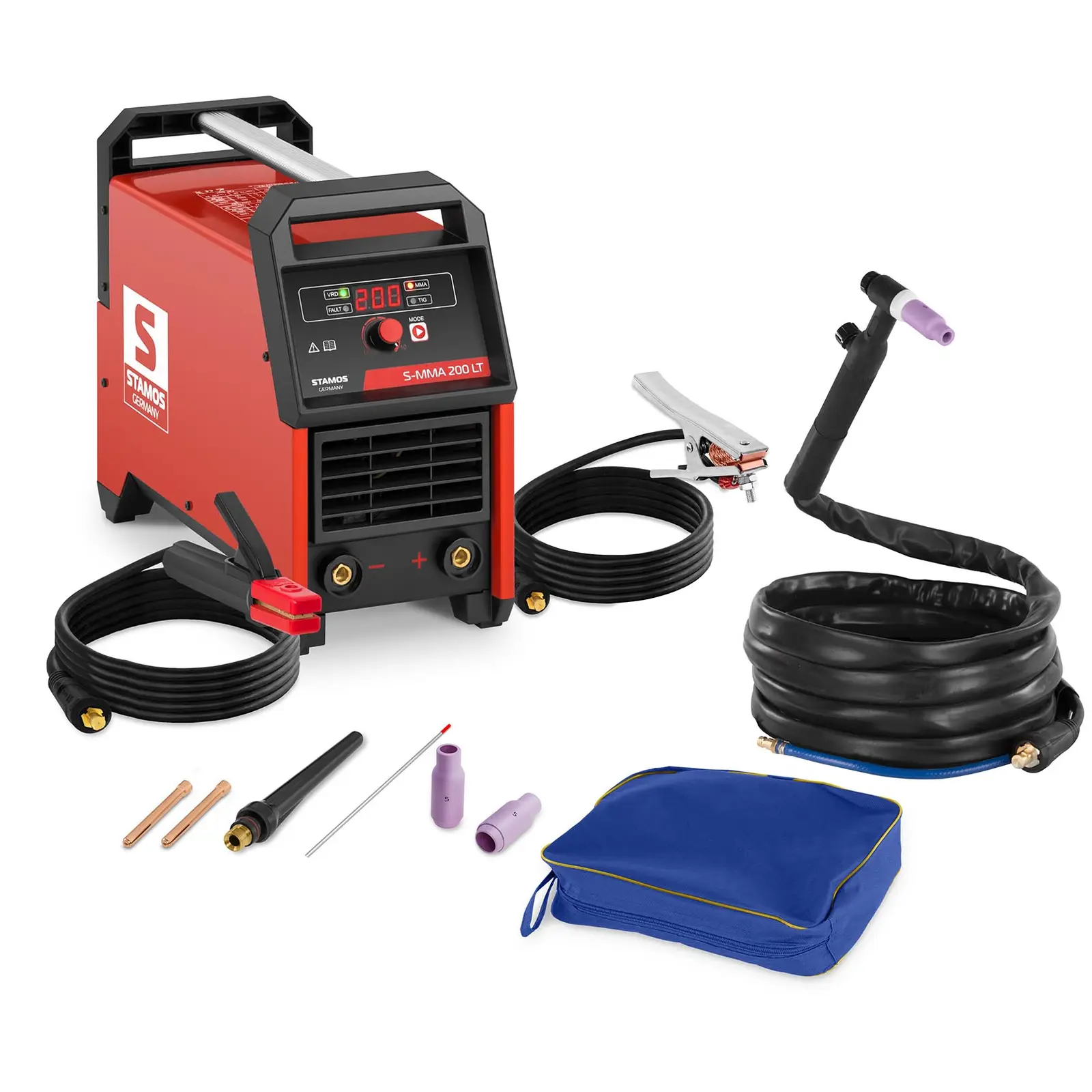

Delivery Package
  • S-MMA 200 LT
  • Electrode holder with cable, 1.9 m
  • Ground cable, 1.9 m
  • Lift TIG Welding torch LTT-01-4M
  • Cable assembly (4m)
  • Gas supply line (6 m)
  • Tungsten electrode (2.4 mm)
  • 3 clamping sleeves (1,6 / 2 / 2,4 mm)
  • 3 clamping sleeve casings
  • Ceramic nozzle (6 mm)
  • 2 ceramic nozzles (7 mm)
  • Long back cap
  • Metal clamp
  • Instruction manual

Is it easy to set the welding method?

Yes, there is a shift key on the digital control panel with which you can simply select the welding method you need. The optimum welding torch for TIG welding with Liftarc is included in this set.

Can I use my smartphone in the proximity of the welder?

Many TIG welders with a conventional HF ignition can adversely affect electrical devices. This torch is for TIG welding with Liftarc, which can be used near sensitive electrical devices such as your smartphone.
