Product Number: EX20280043
|Model: WIE-PM-500

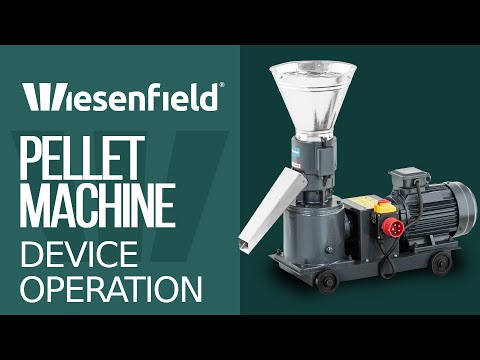

Factory second Pellet Machine - max. 100 kg/h - Ø 120 mm - 2 rollers
![Factory second Pellet Machine - max. 100 kg/h - Ø 120 mm - 2 rollers (Rotary speed [rpm]: 1430)](https://assets.expondo.com/asset/product_photos/10280043_photo_7?twic=v1/contain=104x104)
![Factory second Pellet Machine - max. 100 kg/h - Ø 120 mm - 2 rollers (Rotary speed [rpm]: 1430)](https://assets.expondo.com/asset/product_photos/10280043_photo_7?twic=v1/contain=1024x500 "Factory second Pellet Machine - max. 100 kg/h - Ø 120 mm - 2 rollers (Rotary speed [rpm]: 1430)")
![Factory second Pellet Machine - max. 100 kg/h - Ø 120 mm - 2 rollers (Rotary speed [rpm]: 1430)](https://assets.expondo.com/asset/product_photos/10280043_photo_7?twic=v1/contain=40x40){kind=small}
On Sale
Seconds
Our factory seconds are generally refurbished customer returns or former display items. The products may have cosmetic defects but are technically flawless. As usual, we provide the normal right of return and warranty.
€755.00€944.00
Lowest price in the 30 days before the discount: €994.00
Sold out
Lowest price guaranteed
Key features
- Versatile – creates pellets for feed, fertiliser, or fuel from organic materials
- High productivity – processes 60 to 100 kg/h of feed or 40 - 60 kg/h of wood chips
- Powerful processing – a 3000 W motor delivers a rotational speed of 1430 RPM
- Sustainable production – extended pellet lifespan due to heating at 60 - 80 °C
- User-friendly – compact, portable, and simple-to-use machine with 4 wheels
- cost-efficient pellet production – twin-roller technology relies on a mechanically simplified design for reliable and low-maintenance operation with low acquisition and operating costs
Delivery details
Premium Guarantee
User Manual
Pellet press B True
I'm very happy with the press. Delivery took a while. The price is okay. The machine makes good pellets after proper training.
Technical details
Driveshaft
3-phasing
Design
Fixed roller type
Max power
3 kW
Die diameter
120 mm
Number of rollers
2
Rotary speed [rpm]
1430
Number of dies
1
Emergency stop
Yes
Lubrication system
Manual
Number of rollers
1
Die hole specification
6 mm
Material
Cast iron
Alloy steel
Wheel size [mm]
Ø85
Hopper size [mm]
Ø275
Feed production capacity [kg/h]
60 - 100
Colour
Grey
Voltage [V]
400
Sawdust capacity [kg/h]
40 - 60
Suitable for or processable materials
Crushed bark
Woodchips
Sawdust
Straw
Leaves
Carton
Peas
Maize
Soy
Wheat
Oats
Hay
Sunflower seeds
Wool
Continuous operating time [h]
24
IP protection class
IP55
Operating Temperature [°C]
60 - 80
Dimensions (LxWxH)
88.5 x 35.5 x 73 cm
Weight
76 kg
Shipping dimensions (LxWxH)
78 x 31 x 63 cm
Shipping weight
88 kg
Delivery package
- Pellet Machine WIE-PM-500
- Assembly materials
- Instruction manual
- Supplied WITHOUT a mains plug.
Product Description
The animal feed pellet press creates big batches of feed pellets in no time
With the pellet press from Wiesenfield, you can produce up to 100 kg of feed sticks per hour or process up to 60 kg/h of wood chips. Each piece of the raw material should be less than 6 mm in size. This way, you can produce large quantities of pellets for feeding, fertilising, or heating at a low cost. The cylindrical feed pellets contain only the ingredients that correspond to your recipe.
The industrial-grade pellet machine from Wiesenfield
The inserted material is pressed at high pressure through a 120 mm diameter die. The application of pressure and temperatures of 60 - 80 °C generates 6 mm diameter pellets. Heat increases the longevity of the pellets. Thanks to the practical discharge chute made of galvanised sheet steel, you can fill the finished pellets directly into bags or other containers.
The efficient pellet press with user-friendly design
The granulate press is driven by a 3000 W electric motor. The easy-to-use machine is equipped with a centrally-located emergency stop switch that is easily accessible at all times. A protective grid (37 x 37 mm mesh) in the hopper prevents foreign objects or hands from entering the press. The pellet press is highly mobile on four large wheels.
Note: Make sure to include the pellet binder in your order (Product number: 10530000). The wheat starch powder makes pressing and storing your pellets easier.
Note on wearing parts: You can use the built-in dies and rollers for pellet presses for up to 300 hours. If they are worn, replace them promptly. Wear parts are excluded from the statutory warranty and the extended warranty. You can find corresponding spare parts in the expondo online shop.
Customers interested in this product also viewed
Ratings & reviews
Ratings & reviews
4.3
Based on 3 reviews
Sort by :
Pellet press B True
I'm very happy with the press. Delivery took a while. The price is okay. The machine makes good pellets after proper training.
Show original review
Pellet press
Hello, I received the machine on the scheduled day but not at the scheduled time.... I haven't tried it yet but I'm not afraid of a bad surprise
Show original review
Pelletpresse
Bought B-stock. Unfortunately some small parts were missing from delivery. Fast, friendly customer service, problem was solved satisfactorily. Press works as it should.
Show original review
Frequently asked questions
What is the capacity of the feed press?
The pellet machine processes up to 100 kg of feed or up to 60 kg of wood chips per hour into finished pellets.
Can I produce pellets of different sizes with the pellet press?
As standard, the pellet machine includes a die for pellets with a 6 mm diameter. For those who need smaller pellets, Wiesenfield offers dies with sizes from 2.5 to 4 mm, well-suited for producing feed for young birds, rabbits, chickens, or pets like dogs or cats. If you need larger pellets, you can find suitable perforated plates with diameters up to 8 mm at expondo. A variety of options allows you to perfectly cater to different needs, like wood pellets for fuel or pellets for fertiliser.
