No Reviews Be the first to review this product

Endoscope Camera - 60 m - 42 LEDs - 9" display

€2,849.00
Price includes 23% VAT.

Item: EX10030555

|

Model: SBS-EC-670

Low stock

Hurry up! Only a few items left!

Price includes 23% VAT.

Ready to ship!

Delivery approx. Friday, 26 July
Qty
Discount
Per item
1+
0%
€2,849.00
3+
5%
€2,706.55
5+
10%
€2,564.10
10+
15%
€2,421.65
Key features
  • Perspective—9” TFT monitor for clear display with sun protection
  • Bright—42 LEDs ensure optimal visibility
  • Far-reaching—60 m cable enables astonishing ranges
  • Documented—video and audio recordings and pictures can be saved
  • Mobile—practical transport case for field use
Secure payment methods
Delivery details
Returns and warranty

TECHNICAL DETAILS

Material
ABS plastic
Stainless steel
PP
Copper
Glass fiber
Display
LCD
Display type
9" TFT colour screen
Guide stars [mm]
100 / 140 / 220
Memory
Sd Card 8G (Max 256G)
Digital Zoom
8x
Angle of view [°]
105
Head diameter
38 x 230 mm
Hose diameter [mm]
7 (sensor cable)
Sensor resolution
1/4 Inch
Photo/video format
MP4
Signal transmission
-
Protection rating IP
Ip68
Possible pipe diameter [mm]
70 - 300
LED light
Yes
USB port
Yes
Auto power off
No
Battery powered
Yes
Carry case included
Yes
Number of LEDs
12
Probe length
60 m
Degree rotation of the head
90 °
Dimensions (LxWxH)
43.5 x 51.5 x 20 cm
Weight
10.25 kg
Shipping dimensions (LxWxH)
108 x 56 x 111 cm
Shipping weight
21.45 kg

Delivery package

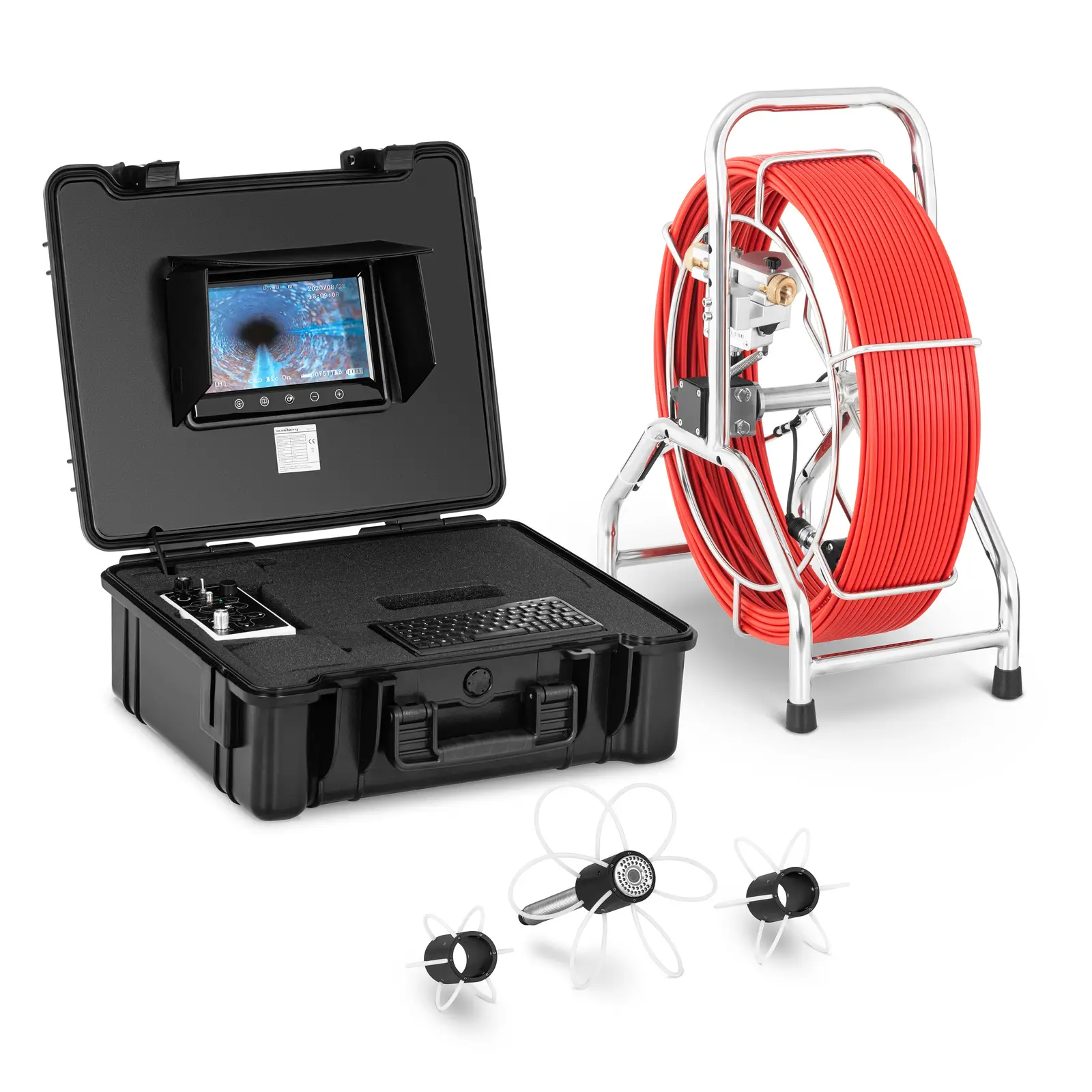

  • Endoscope camera SBS-EC-670
  • 9" TFT monitor
  • Base unit
  • Control box
  • Connecting Cable
  • Keyboard
  • Cable
  • Camera head 40 mm
  • Guide stars 100, 140, 220 mm
  • Battery with charger
  • SD card 8 GB
  • USB stick
  • Microphone
  • Screwdriver
  • Remote control
  • 60 m cable
  • Cable reel
  • Instruction manual

PRODUCT DESCRIPTION

The endoscope camera offers you a view even into long pipes

The reason for a clog or damage is often hidden deep in the pipe system. The endoscope camera from Steinberg Systems is the first choice so that you can get an impression of pipelines and inspect damaged areas in detail.

See the inside of the pipes on your screen with the sewer camera

The camera head is guided into the pipe with the help of a 60 m fibreglass cable. The endoscope snake camera is suited for use in drains measuring 70 to 300 mm in diameter; three differently sized guide stars adapt the camera to the pipe diameter. The cable is coiled on a stainless steel cable reel with a crank and brake. The camera head and cable are waterproof (IP68) and can therefore be used even in damp environments. In winding pipe systems the cable easily follows branches up to 90°.
The flexible camera head can be turned 90° and has a visual angle of 105°. 42 LED lights integrated into the camera head provide the necessary light. The high-quality sapphire lens is suited even for rough environments and delivers razor-sharp images on the LCD TFT monitor in 16:9 format. In addition, the 8x digital zoom and the independent image alignment show even the smallest details in the pipe. The camera is controlled via a base control unit, or you can use the supplied remote control.
In addition to easy viewing, you can also capture video recordings in MP4 format and images that will give you valuable information when analysing fractures or blockages. The endoscope inspection camera is equipped with an SD slot so that you can use SD cards up to 256 GB to store the images. An 8 GB SD card is included in delivery.
The drain camera is powered by a battery, so you can use it anywhere without an external power source. One battery charge is sufficient for 7 h of use, and the battery recharges in just 5 hours. The endoscope camera can be stowed in a sturdy waterproof plastic (ABS) case for mobile use.

Ratings & reviews


Sort by :

Frequently asked questions

How flexible is the cable when inspecting pipes?

It can be bent up to max. 90°.

Can I also use the camera in wet pipes?

Yes, as long as the quality of the water allows, you can also inspect drain pipes or similar.

Can I take video recordings with this device?

Yes, you can save the recordings on the SD card (up to 256 GB) or on a USB stick.
