Product Number: EX18000702
|Model: S-MIGMA 250.IGBT-SET-2
Combination welder - 250 A - 230 V - electrodes E6013 - Ø 2.5 x 350 mm - 2 x 5 kg
![Combination welder - 250 A - 230 V - electrodes E6013 - Ø 2.5 x 350 mm - 2 x 5 kg (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/18000702_photo_6?twic=v1/contain=104x104)
![Combination welder - 250 A - 230 V - electrodes E6013 - Ø 2.5 x 350 mm - 2 x 5 kg (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/18000702_photo_6?twic=v1/contain=1024x500 "Combination welder - 250 A - 230 V - electrodes E6013 - Ø 2.5 x 350 mm - 2 x 5 kg (Frequency [Hz]: 50)")
![Combination welder - 250 A - 230 V - electrodes E6013 - Ø 2.5 x 350 mm - 2 x 5 kg (Frequency [Hz]: 50)](https://assets.expondo.com/asset/product_photos/18000702_photo_6?twic=v1/contain=40x40){kind=small}
Key features
- Powerful - welding current up to max. 250 A infinitely variable
- Versatile - 4-in-1 combination welder with MIG/MAG, MMA, TIG and FCAW
- Effective - optimum welds right from the start when electrode welding with Hot Start
- for mild steel - electrodes (E6013) with the dimensions Ø 2.5 x 350 mm in 2 x 5 kg packing
- Effective – clean arc, minimal spatter and even weld
Delivery details
Premium Guarantee
User Manual
Technical details
AC
Yes
DC+
Yes
DC-
Yes
ARC-Force
No
Frequency [Hz]
50
Anti Stick
No
Hot Start
Yes
Water cooling
No
Flux Cored Wire
Yes
Gas magnetic valve
Yes
Material
Steel
Alloy type
carbon managanese
Wire speed [m/min]
2.5-13
Lagging type
rutile-cellulosic coated
Electrode size [mm]
2.5 x 350
Classification
AWS E 6013 IS ER 4222X
Efficiency [%]
≥ 0.85
Duty cycle for 40°C [%]
60
Functions
MIG/MMA/TIG
Chemical composition [%]
C 0.09 | SI 0.30 | Mn 0.50
Power factor
0.7
MMA welding current [A]
10 - 250
TIG welding current [A]
10 - 250
Insulation class
F
Max. input current [A]
38 - Mig; 43 - Mma; 29 - Tig
Rated Input current [A]
29.5 - Mig; 33 - Mma; 22.5 - Tig
IEC protection class
Ip21
Dimensions (LxWxH)
0 x 0 x 0 cm
Weight
0 kg
Shipping dimensions (LxWxH)
0 x 0 x 0 cm
Shipping weight
0 kg

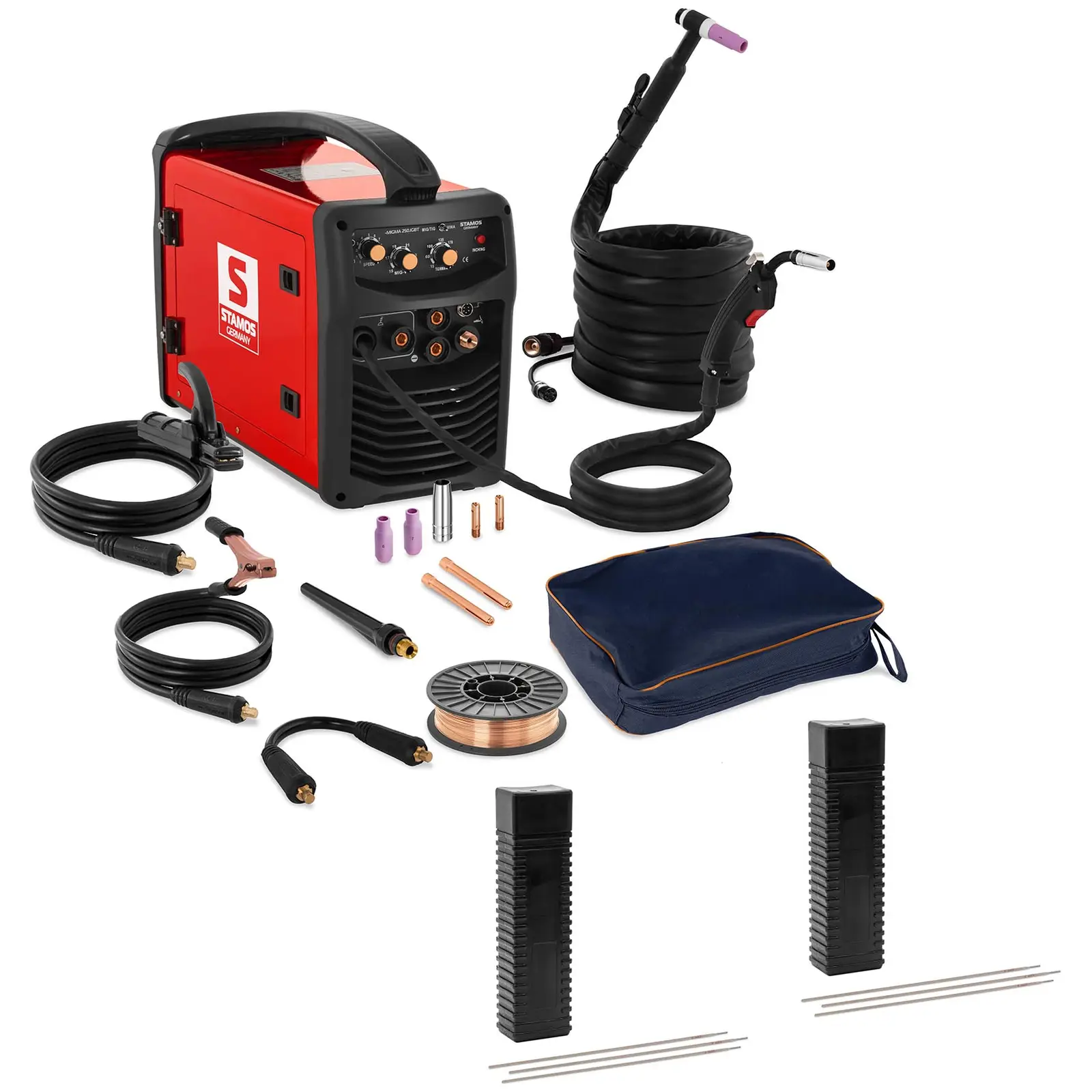

Delivery package
- Combination welder S-MIGMA 250.IGBT
- MIG hose package (1.75m)
- TIG hose package (3.7 m)
- Electrode cable (3 m)
- Ground cable with clamp (3 m)
- Welding wire (0.8 mm) - 5 kg wire spool
- Polarisation cable
- 3 clamping sleeves (2.0 / 2.4 / 3.4 mm)
- Camping sleeve housing
- 3 ceramic nozzles
- MIG electrode
- Contact tip holder
- 2 x stick electrode S-WME-E6013-4222X 2.5X350/5.0KG, 5 kg
Product Description
Use the welding set for an optimal welding experience
Choose the S-MIGMA 250.IGBT combination welder from Stamos Germany for a professional, innovative and high-quality tool. Use the MIG/MAG, MMA, TIG and FCAW welding processes for various repair and maintenance work, with which you can join metals together efficiently and safely. Are you looking for arc welding electrodes? With the rutile cellulose coated stick electrodes you can effectively weld barges, tank containers and car bodies. These have the dimensions 2.5 x 350 mm, with this set you come two 5 kg packs.
This set includes the following products:
